QB Systems product catalog

21 plug-and-play QB Modules, ready-made systems and the QB Control software. Browse by function, open any product for its key specs, or get the full PDF catalog.

Get the full PDF catalog Browse modules

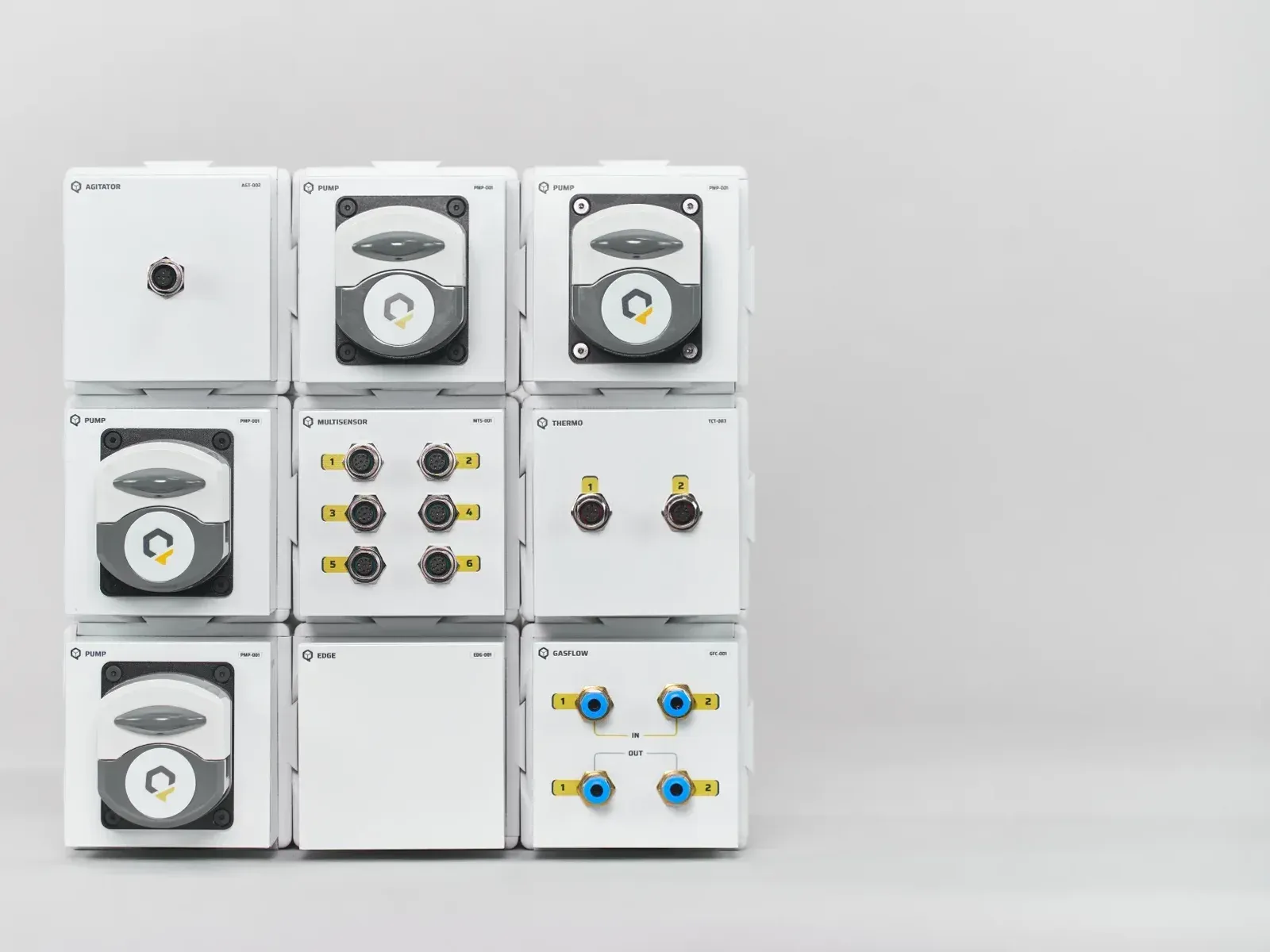

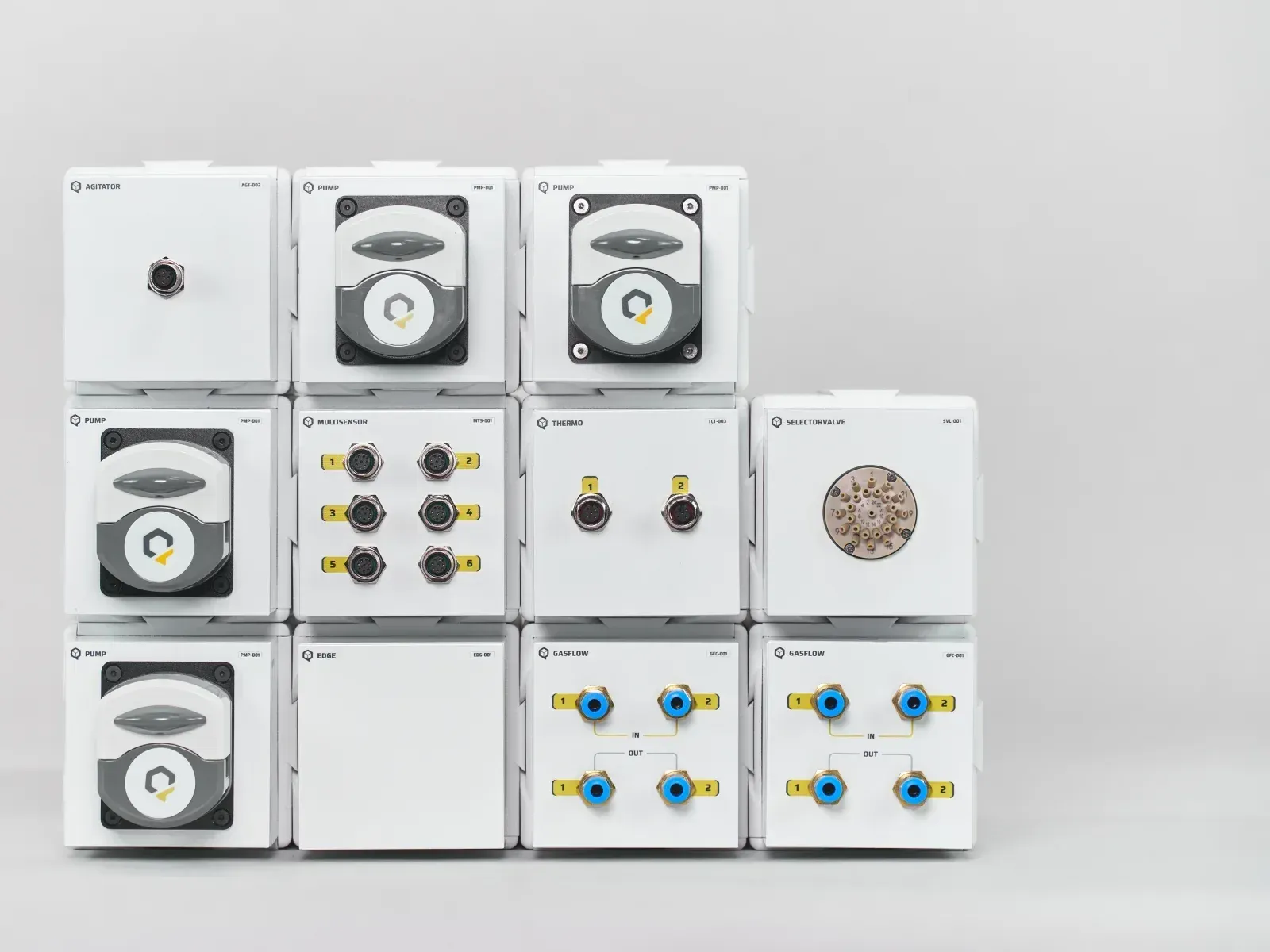

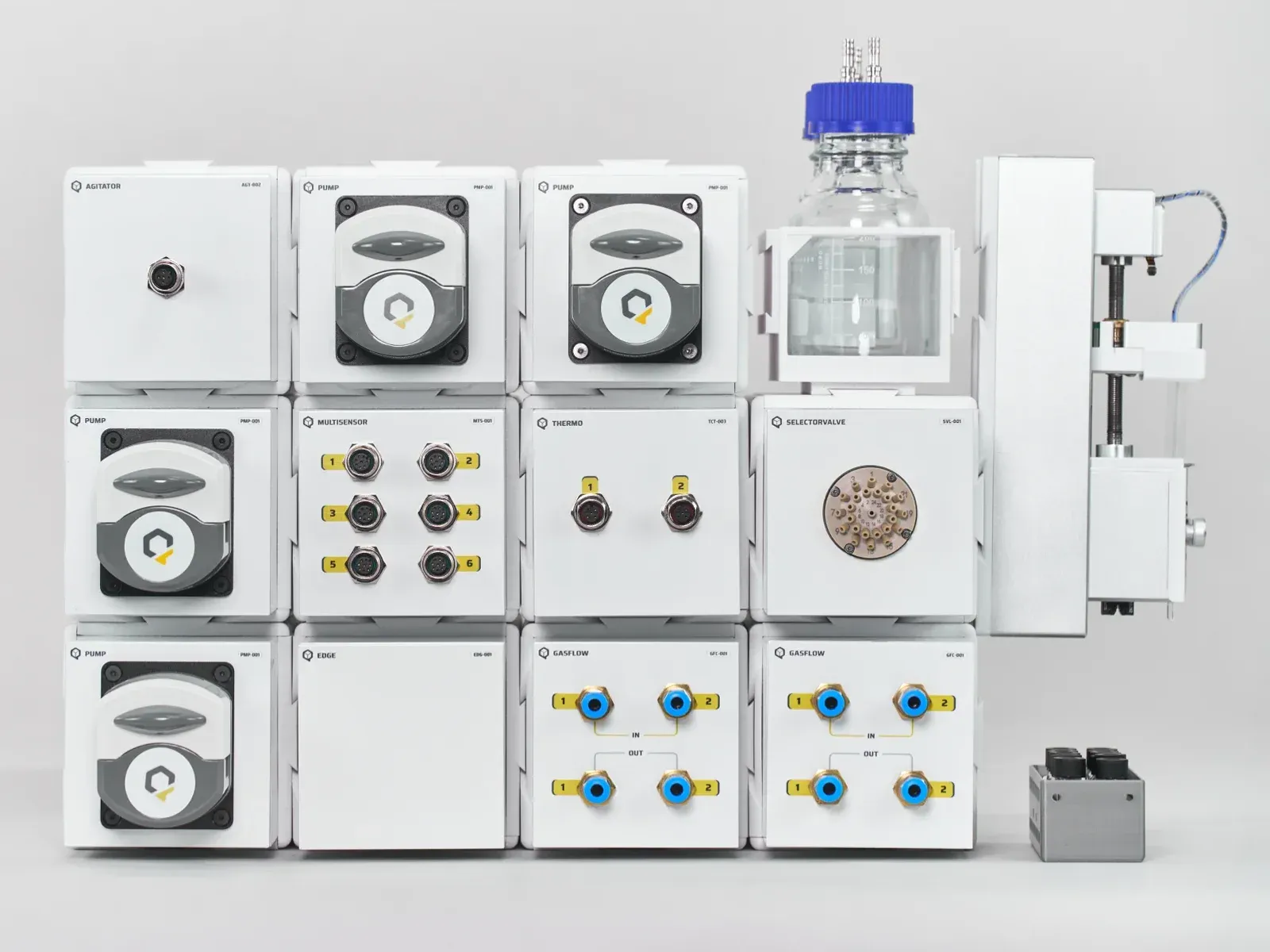

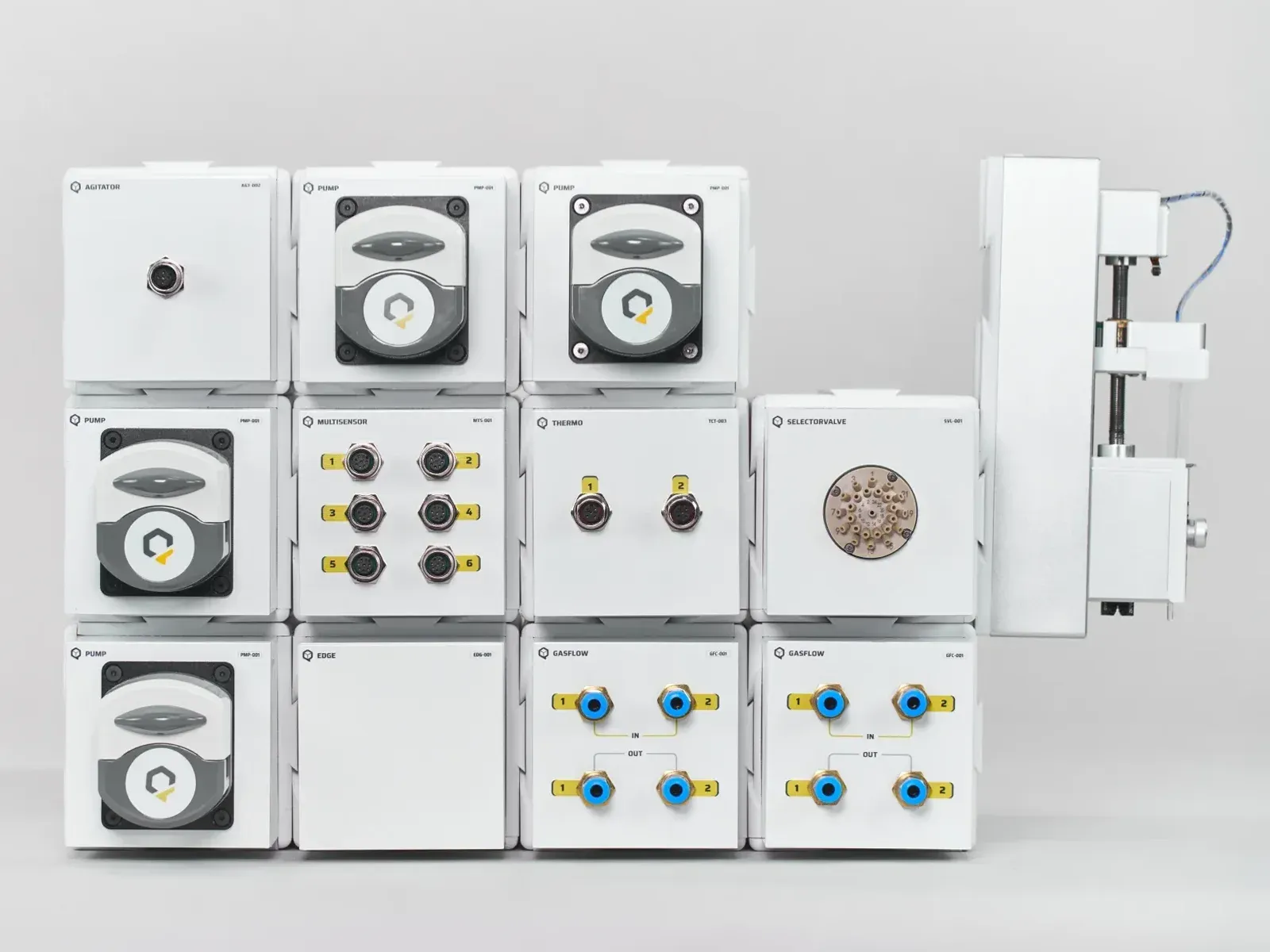

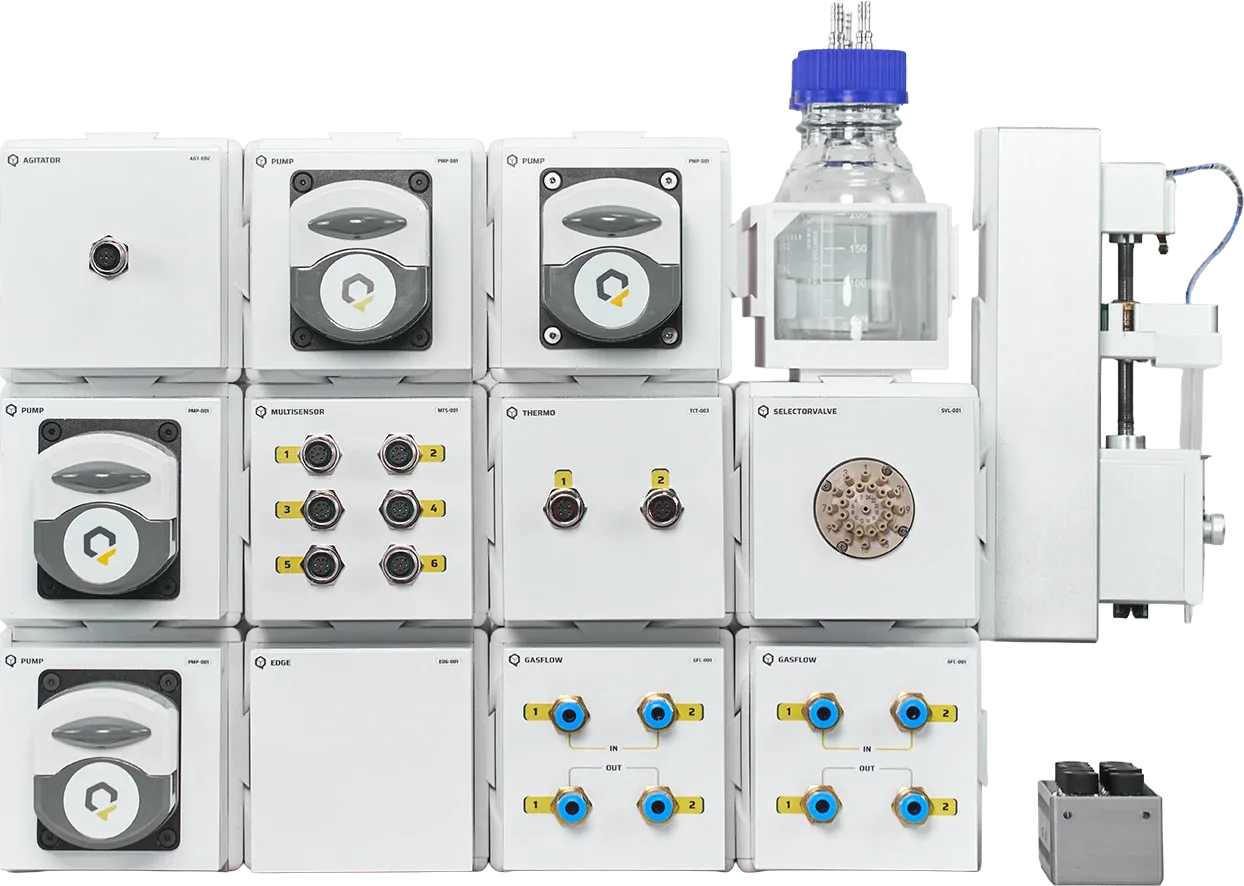

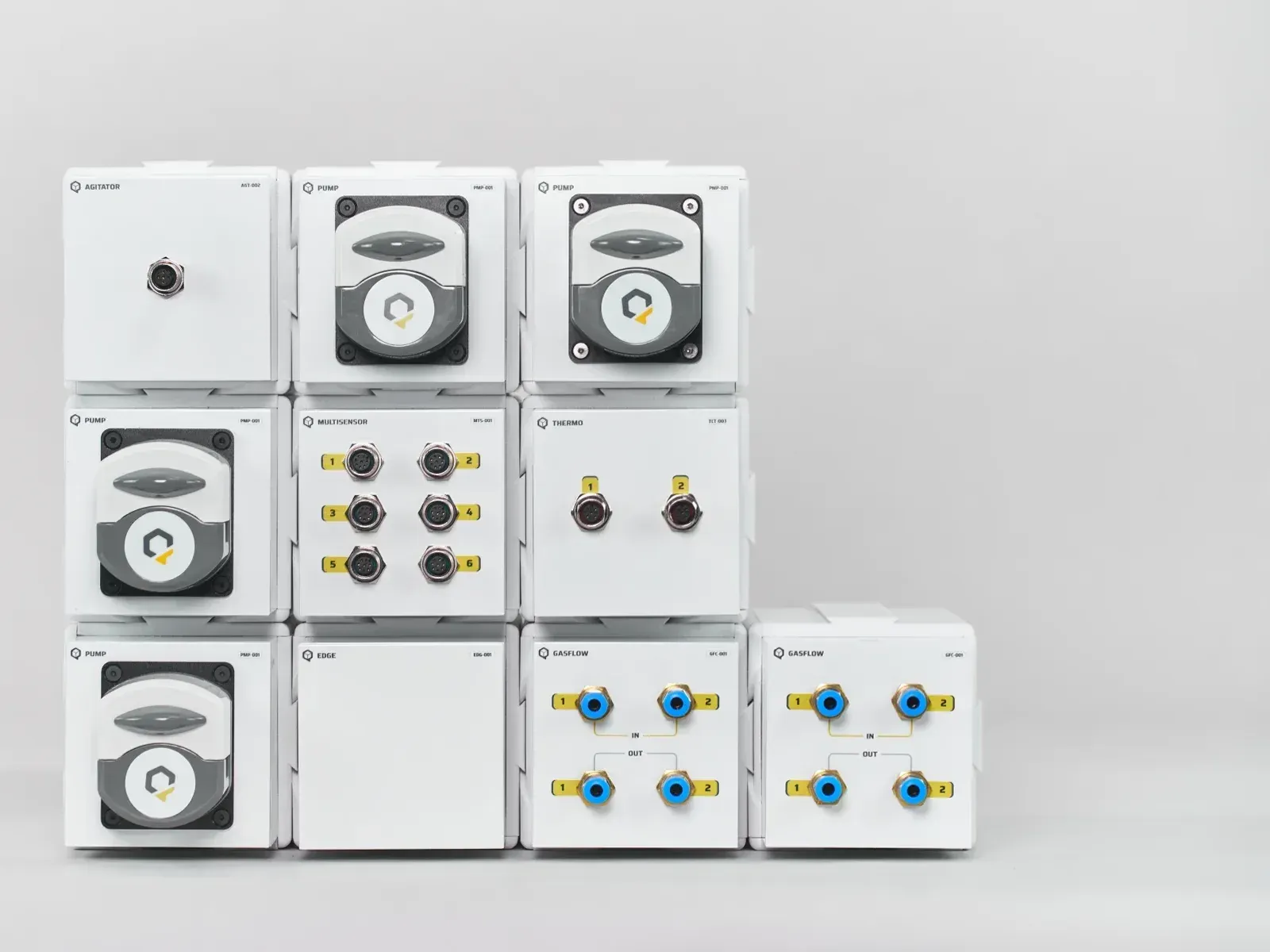

A QB system built from QB Modules: pumps, sensors, gas control, a selector valve, a syringe pump and a glass vessel

QB Modules

QB Modules by function

Every module connects to QB Edge with one PoE cable for power and data, and QB Control discovers it automatically. Click a module for a quick view.

System foundation

Power, network and access to QB Control for every module in the setup.

Fluid handling

Pumps and valves for dosing, transfer, sampling and path selection.

Sensors and data acquisition

Connect process sensors, scales and pressure transducers to QB Control.

Gas control

Controlled gas supply for aeration and headspace.

Temperature control

Heating and cooling of vessels and samples.

Mixing

Overhead and sealed-vessel agitation with speed control.

Lighting

LED lighting for photobioreactors and cultivation systems.

EDG-001
QB Edge, back view

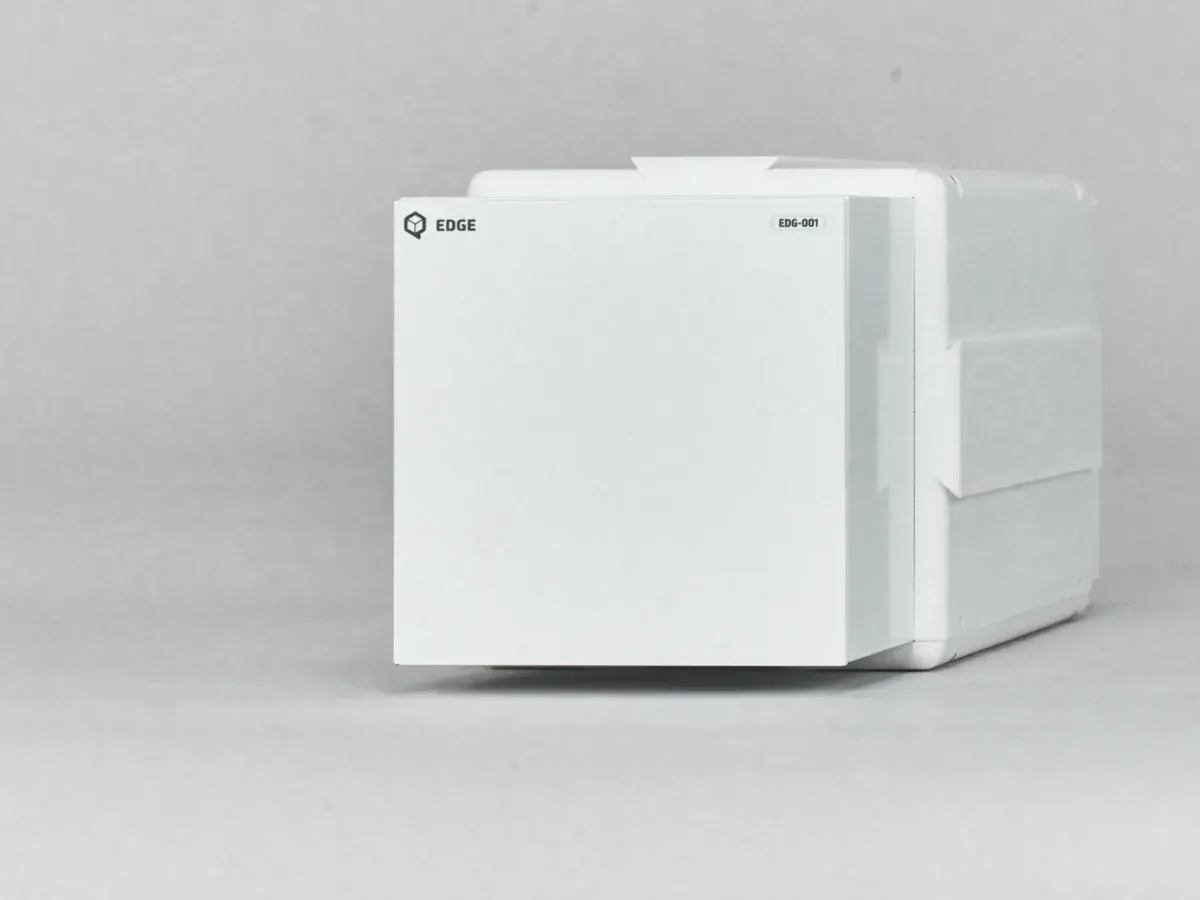

QB Edge

Connectivity hub and PoE power source for QB Modules — the foundation every QB system connects to.

  • Automatic discovery of connected QB Modules
  • Power and network for up to 7 modules
  • Access to the QB Control platform from the company network
Module ports
7 × PoE (more with QB Switch)
Uplink
1 × WAN
Connectivity
Ethernet, WireGuard VPN; Wi-Fi and LTE optional
Power
48 V DC, 220 W (power supply included)
Dimensions
115 × 115 × 310 mm

Requires / works with

Used in

Product page Request full specs

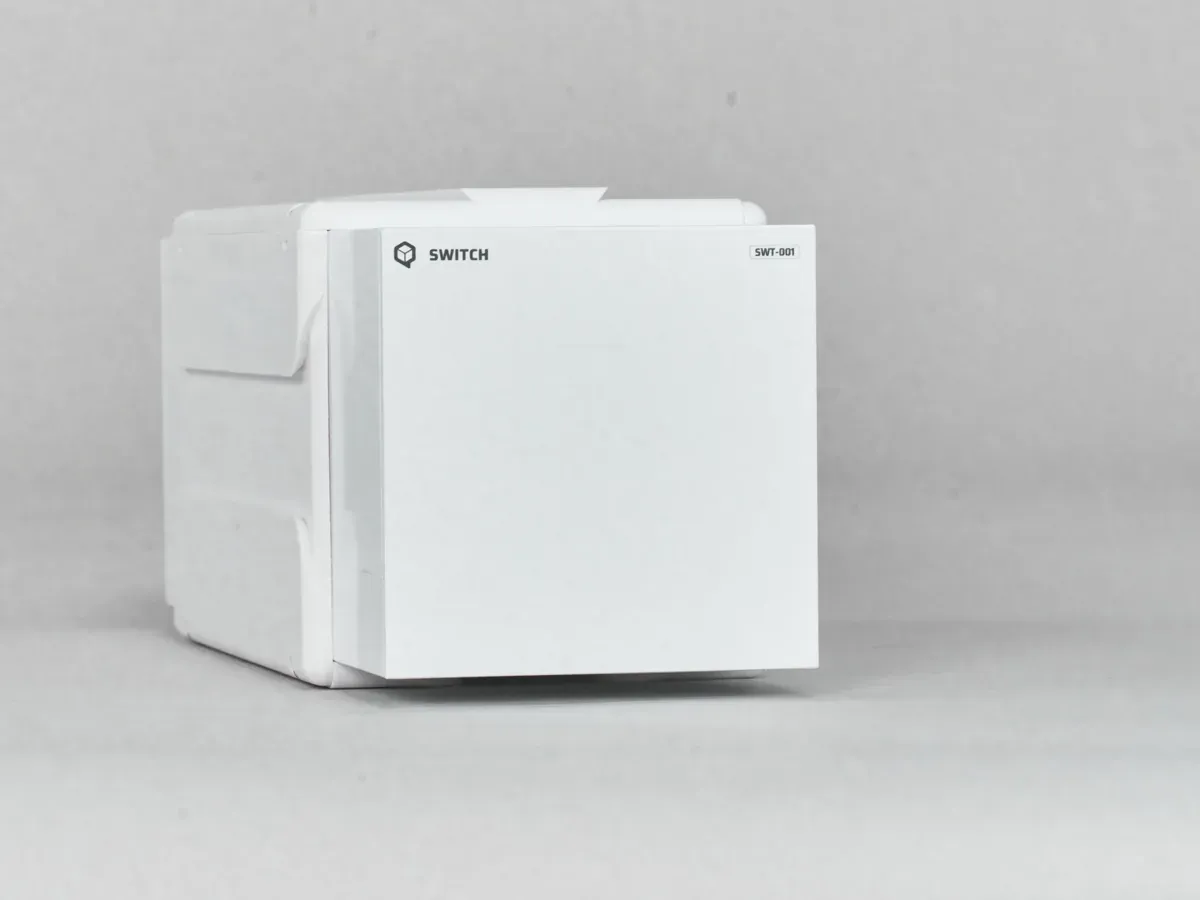

SWT-001

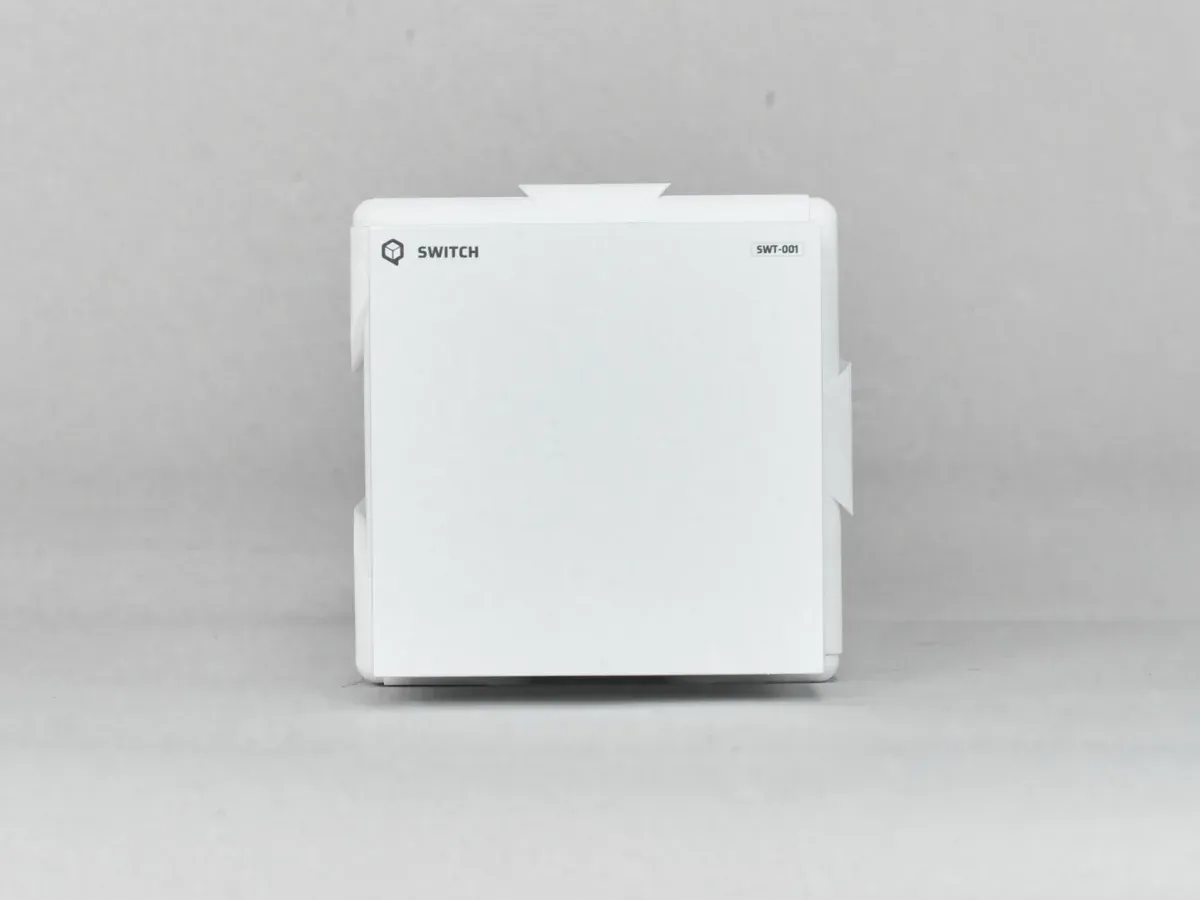

QB Switch, front view

QB Switch

Network extender and power source that adds 7 more QB Module ports to a system.

  • Power and network for up to 7 additional modules
  • External power supply with fuse
  • Expands the setup without extra software
Ports
8 × PoE (7 for modules, 1 to QB Edge)
Power
48 V DC, 220 W (power supply included)
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs
PMP-001

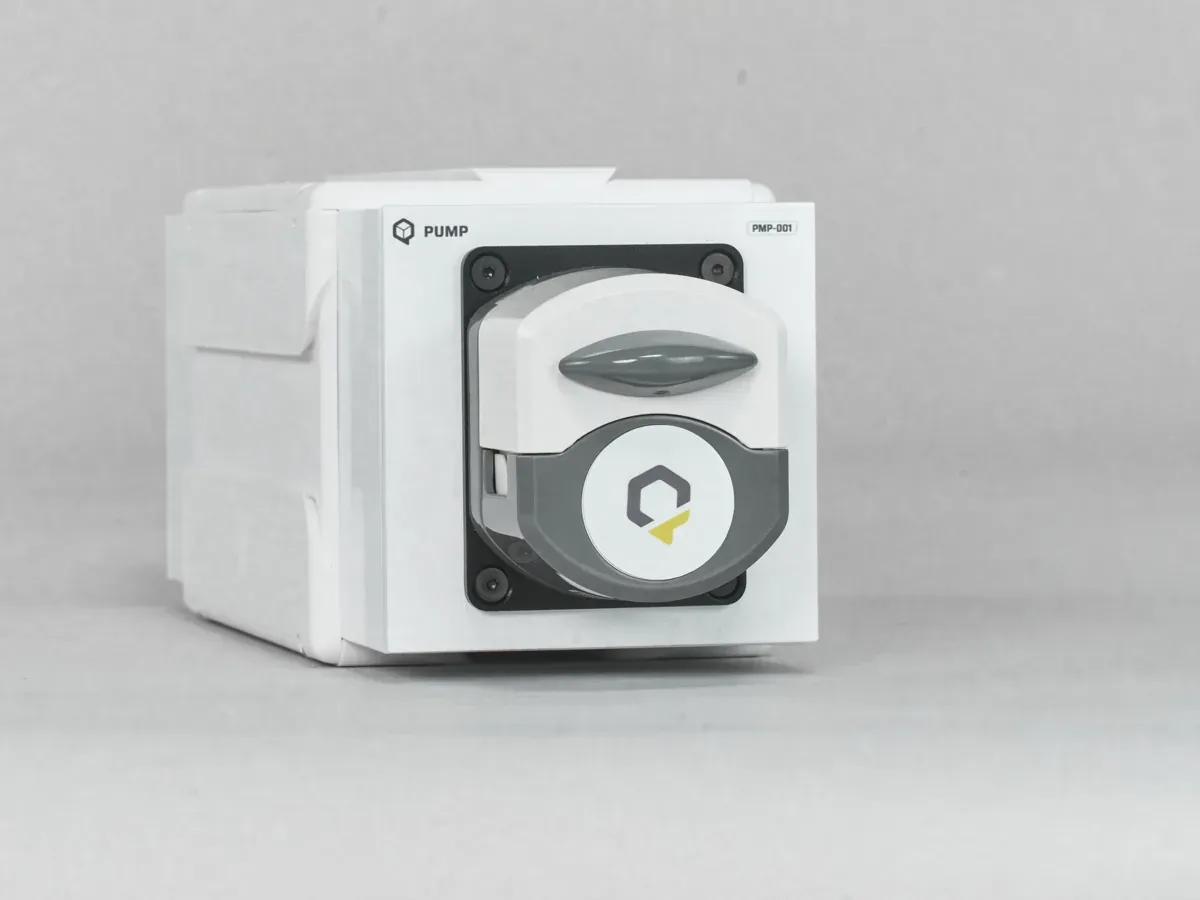

QB Pump (3 rollers), front view

QB Pump 3 rollers

3-roller peristaltic pump for precise, automated fluid transfer with Plug & Play integration.

  • Fixed-speed, flow-rate and totalizer operation
  • Dynamic dosing driven by scales, pH/DO sensors or flowmeters
  • LED ring status indication
Speed
0–300 rpm
Flow rate
0.0033–365.69 mL/min (tubing dependent)
Tubing
0.8–4.8 mm ID × 1.6 mm wall
Power
PoE, 48 V DC, max 30 W
Dimensions
375 × 115 × 115 mm (with pump head)

Requires / works with

Used in

Product page Request full specs
PMP-002

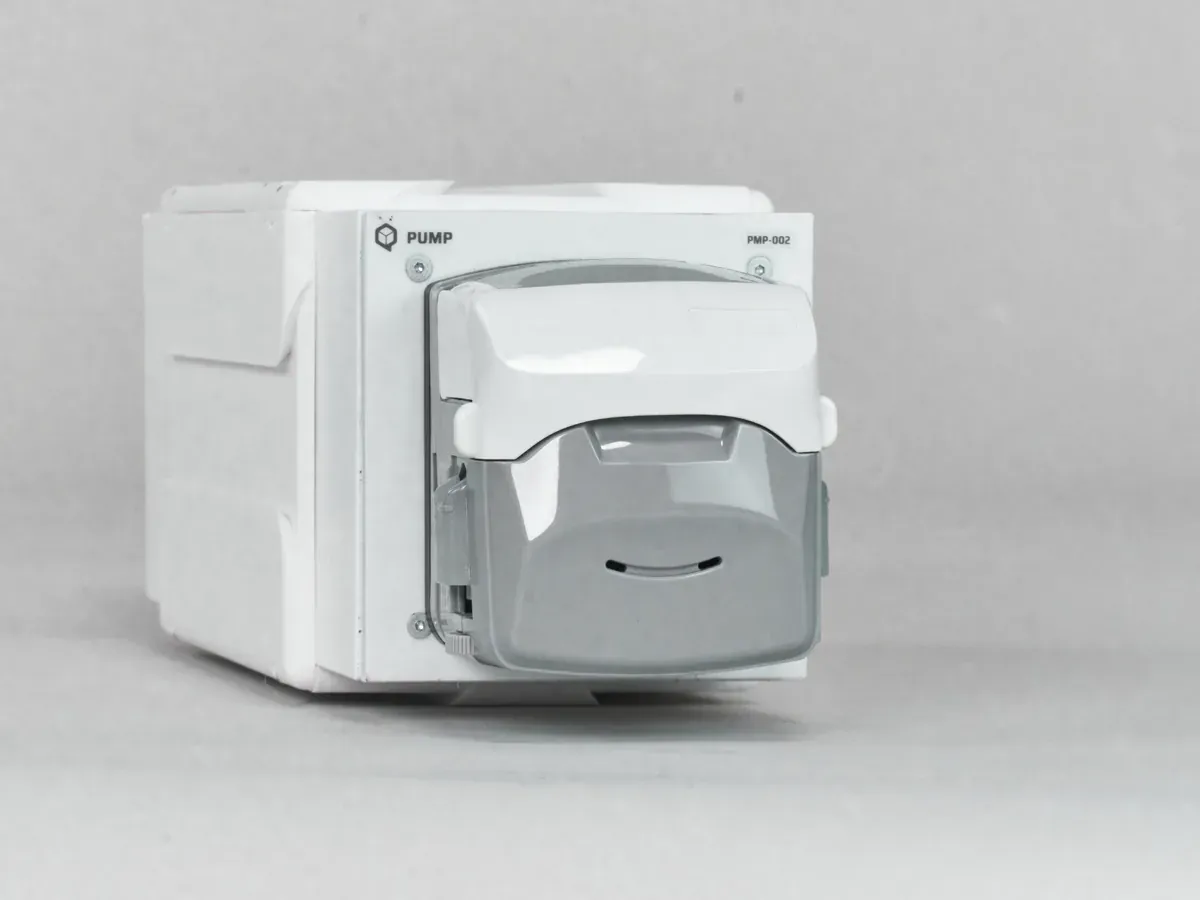

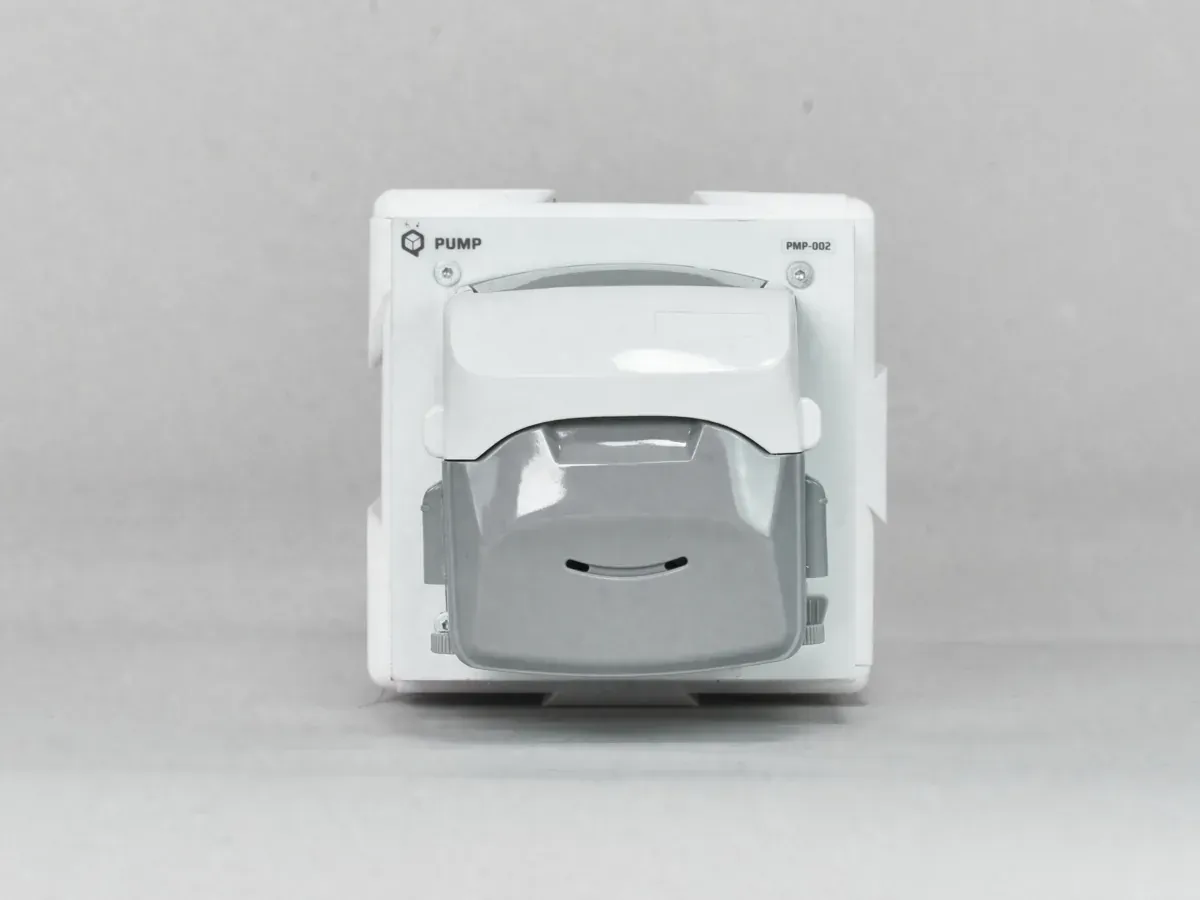

QB Pump (4 rollers), front view

QB Pump 4 rollers

4-roller peristaltic pump for precise, repeatable and contamination-free dosing with tubes up to 7.9 × 1.6 mm.

  • Fixed speed, setpoint or flow-rate pumping with totalizer
  • Dynamic pumping driven by scale, sensor or flowmeter readings
  • Powered and controlled over one PoE cable
Speed
0–600 rpm
Flow rate
0.0079–2,690 mL/min (tubing dependent)
Tubing
0.8–7.9 mm ID × 1.6 mm wall
Dimensions
375 × 115 × 115 mm (with pump head)
Protection
IP40

Requires / works with

Used in

Product page Request full specs
PMP-003

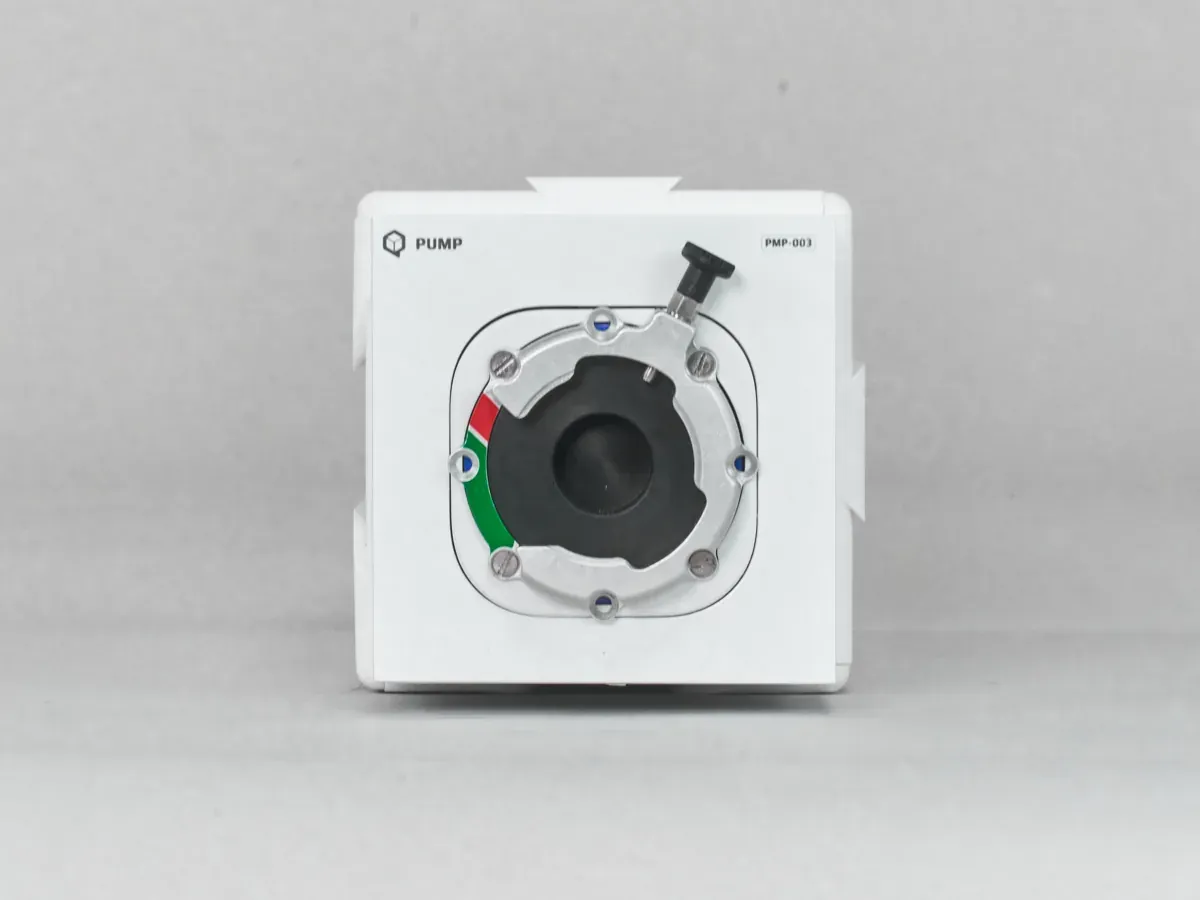

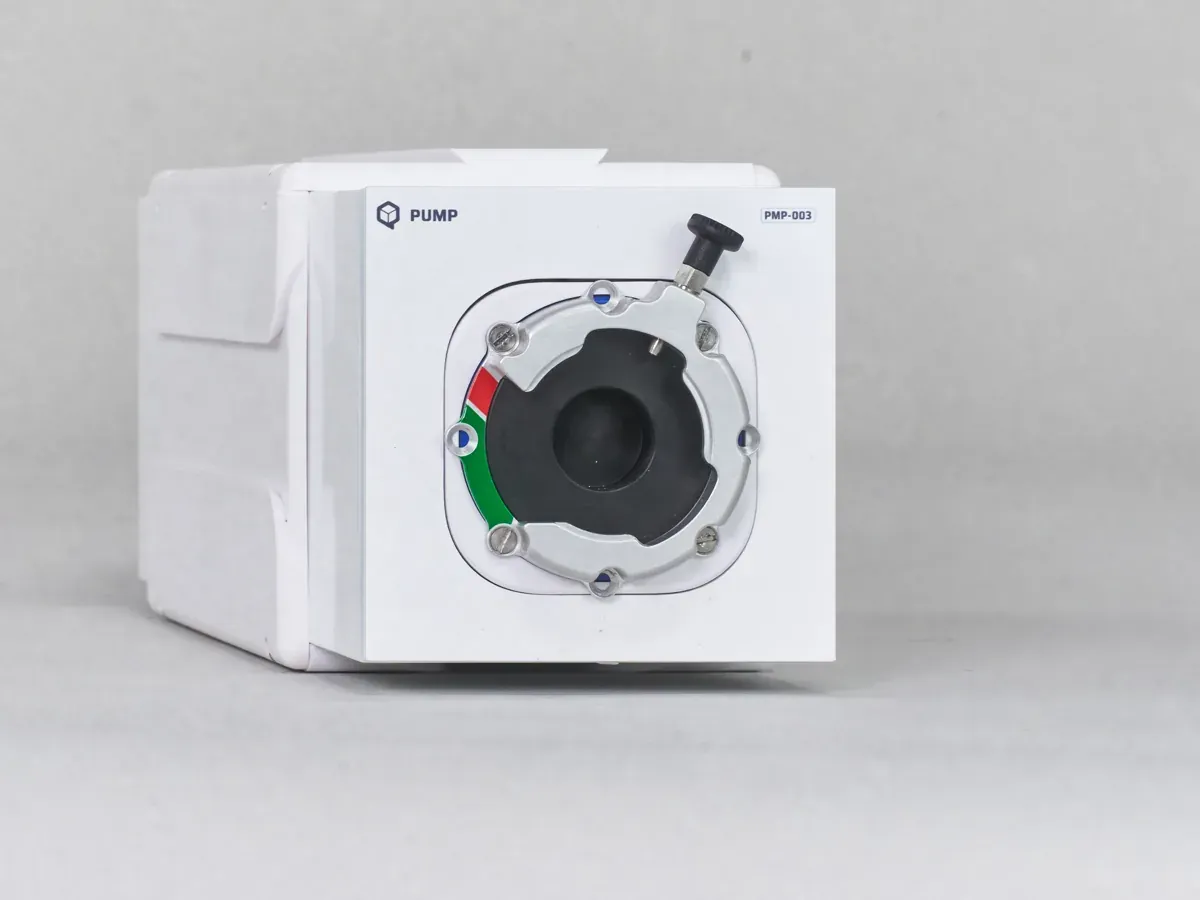

QB Pump (centrifugal), front view

QB Pump centrifugal

Centrifugal pump for efficient, low-pulsation transfer with stable flow and pressure, and a hygienic single-use pump head.

  • Fixed speed, setpoint or flow-rate pumping with totalizer
  • Generates a set pressure, e.g. for filtration
  • Biocompatible single-use pump head
Speed
0–13,000 rpm
Flow rate
0–7.7 L/min
Maximum pressure
1.0 bar / 14.5 psi
Connections
⅜″ barb or tri-clamp for ¼″ ID tube
Dimensions
355 × 115 × 115 mm (with pump head)

Requires / works with

Used in

Product page Request full specs
SPM-002

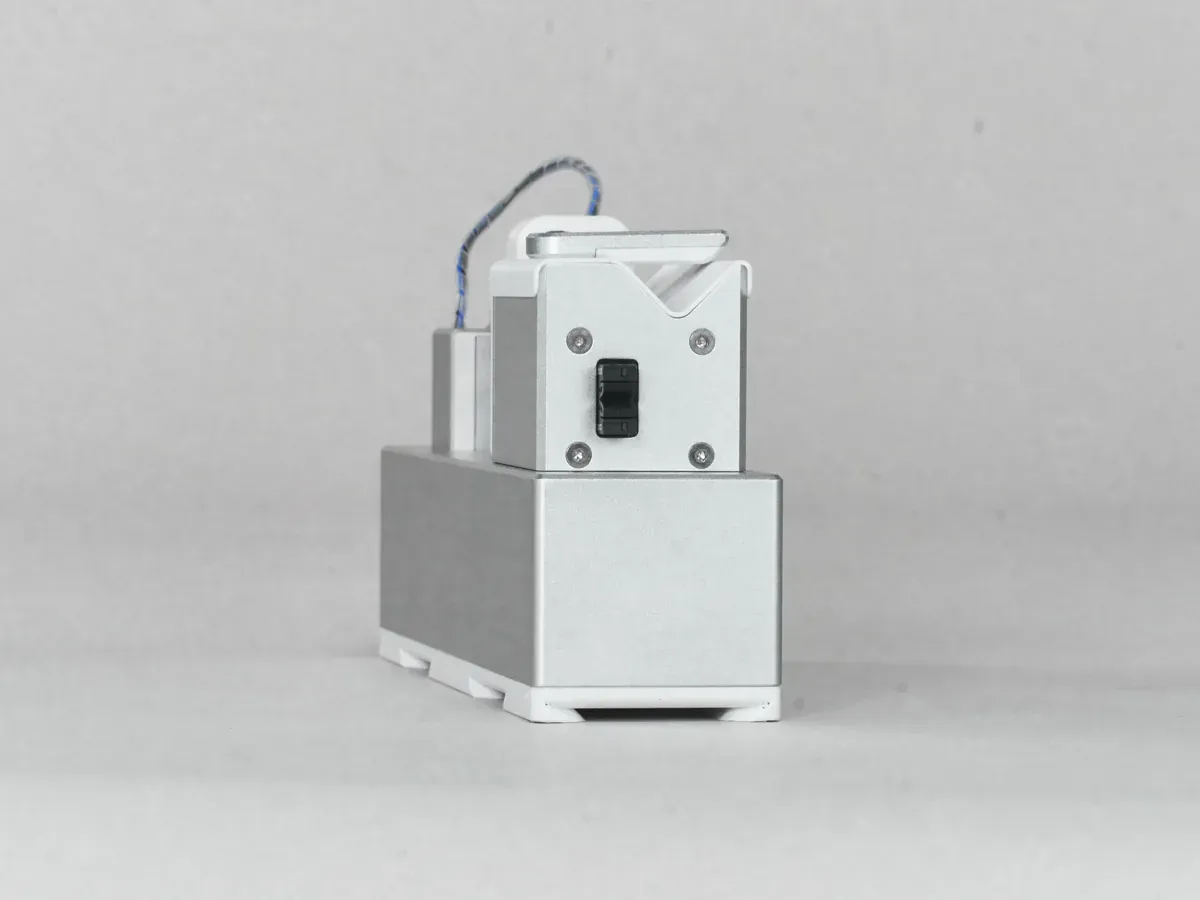

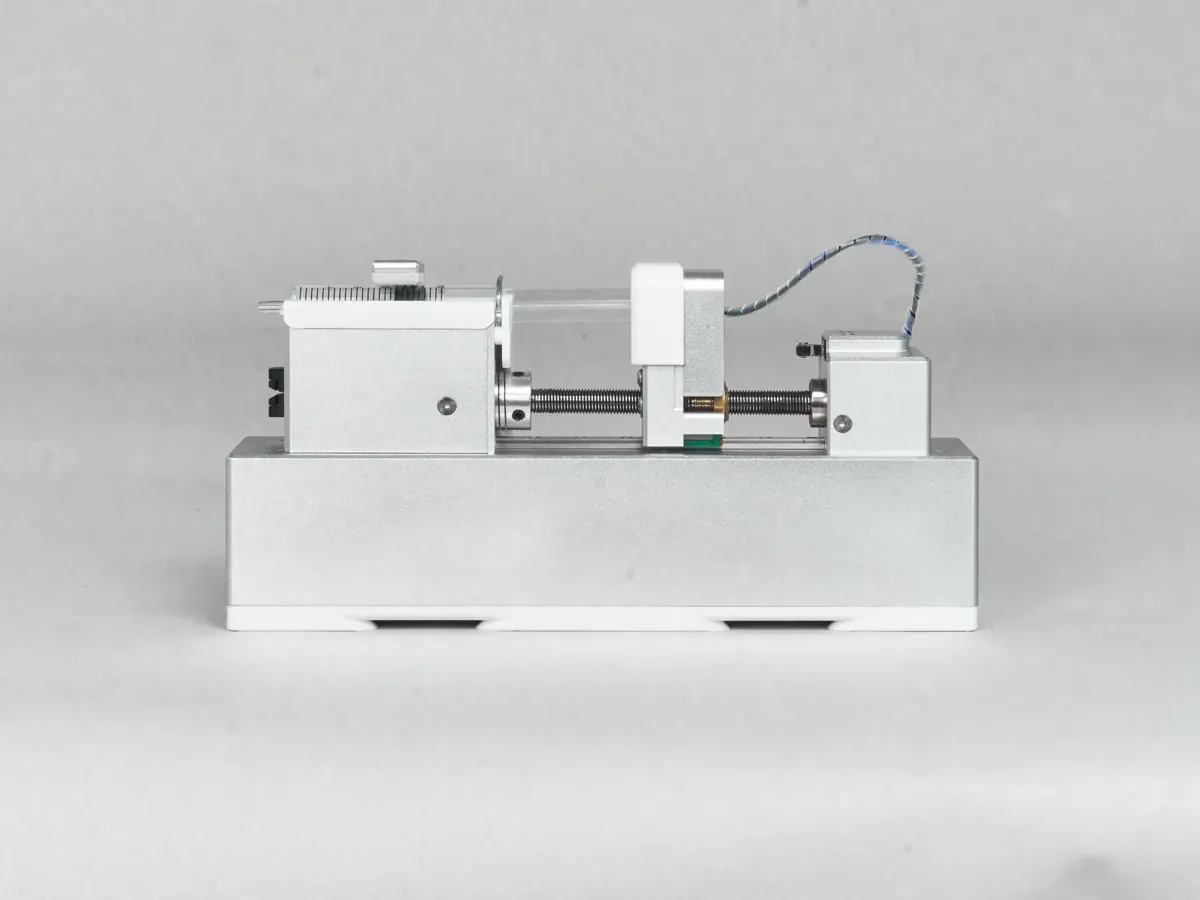

QB Syringe Pump, front view

QB Syringe Pump

Lead-screw syringe pump for high-accuracy automated aspiration and dispensing, with bubble detection and stall monitoring.

  • Integrated bubble sensor
  • Real-time stall detection and encoder validation
  • Volumetric dosing, fill/empty triggers and continuous aspiration
Syringes
5 mL or 10 mL
Flow rate
0.001–50 mL/min (syringe dependent)
Accuracy
±0.5 % of set volume (depends on syringe)
Repeatability
0.17 %
Tubing
1.6 mm OD

Requires / works with

Used in

Product page Request full specs
SVL-001

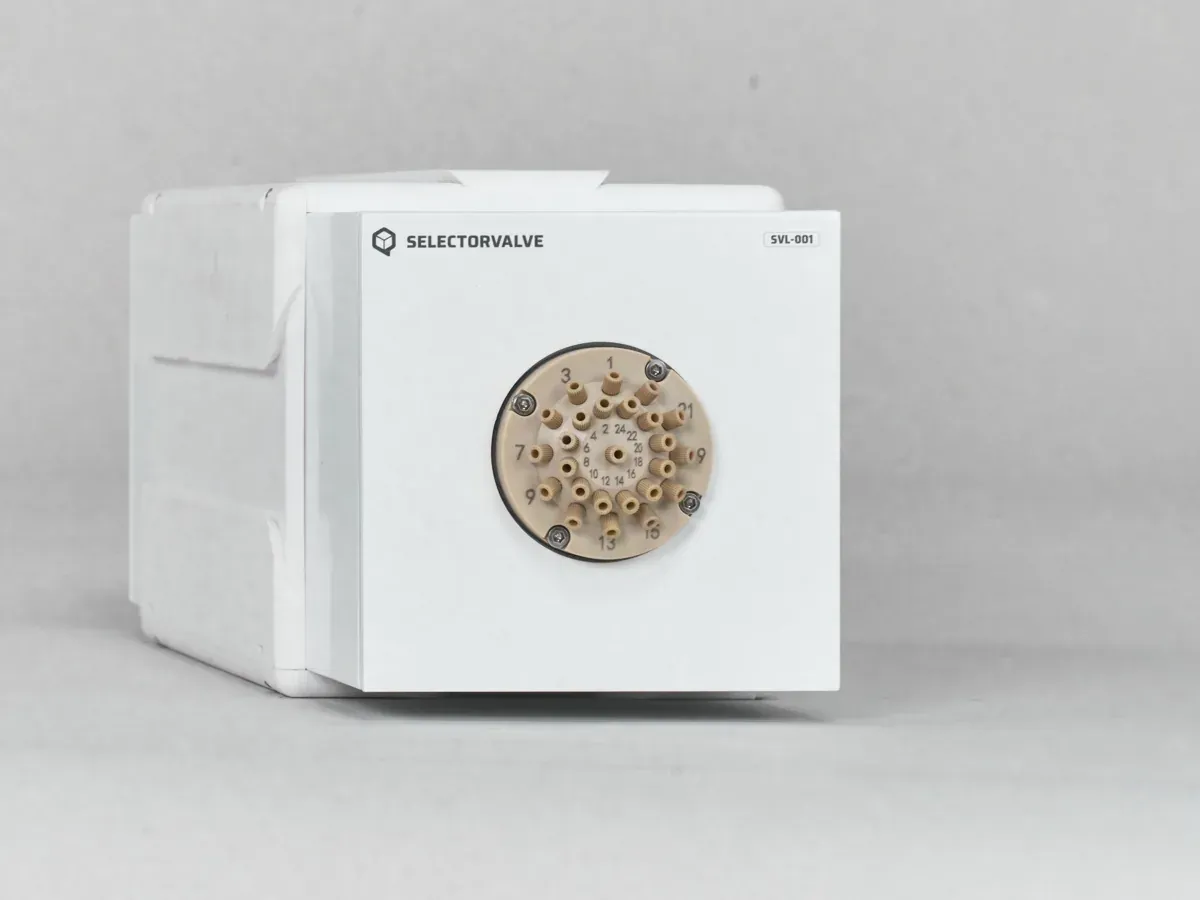

QB Selector Valve, front view

QB Selector Valve

24-port distribution valve that connects a common port to any peripheral port to route fluid paths automatically.

  • 1-to-24 port distribution for sampling and media routing
  • Chemically resistant wetted parts
  • Automatic homing for precise port alignment
Ports
1 common + 24 peripheral
Port thread
6-40 UNC
Tubing
1.6 mm OD
Wetted materials
PEEK, zirconium oxide, sapphire, fluorine rubber
Dimensions
320 × 115 × 115 mm

Requires / works with

Used in

Product page Request full specs
PVL-001

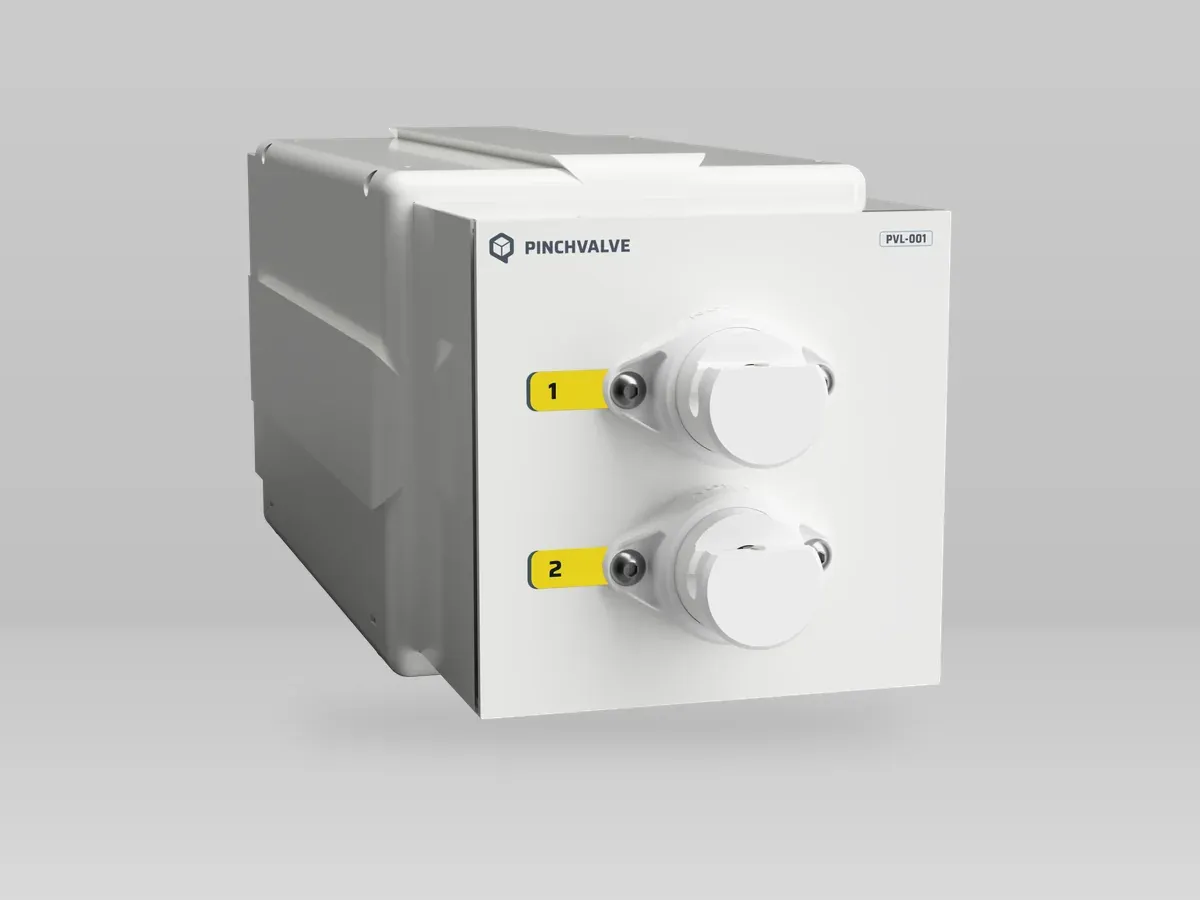

QB Pinch Valve, angled view

QB Pinch Valve

Two independent electric pinch valves that open and close flow in a tube while the fluid stays inside the tubing.

  • Independent control of 2 fluid flows
  • 3-way valve operation with dependent control
  • Flow path control together with QB Pump
Valves
2, independently controlled
Valve type
Normally open
Dimensions
325 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs

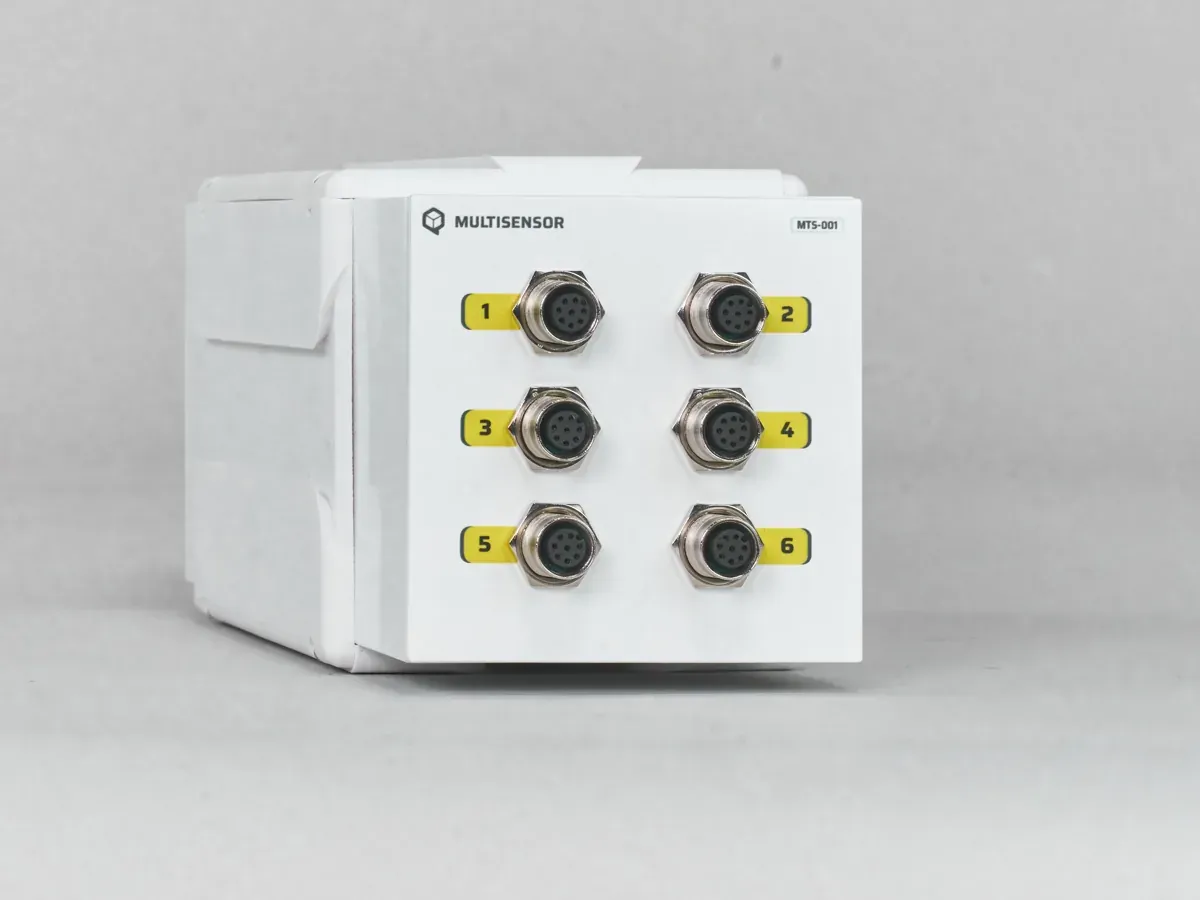

MTS-001
QB Multisensor, front view

QB Multisensor

Data acquisition device with six industrial sensor ports for DO, pH, conductivity, CO2, optical density, temperature and foam/level.

  • Simultaneous data acquisition from up to 6 sensors
  • Sensor values available to recipes, alarms and control loops
  • Powered and connected over one PoE cable
Sensor ports
6 × M12 industrial sockets
Measured values
DO, pH, conductivity, CO2, optical density, temperature, foam/level
Supported sensors
Hamilton Arc; Mettler Toledo with Modbus, ISM or M100; Pt100 via converter
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Used in

Product page Request full specs
MSC-001

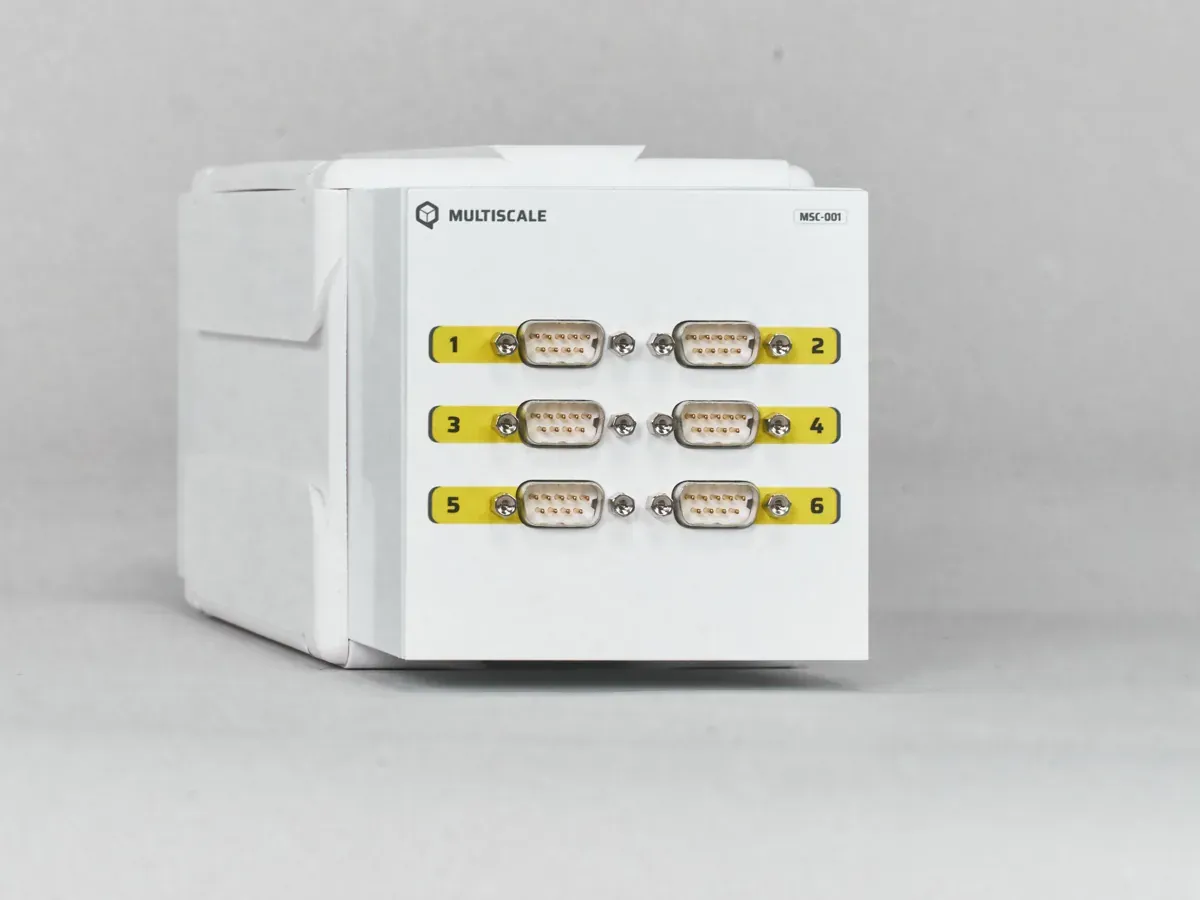

QB Multiscale, front view

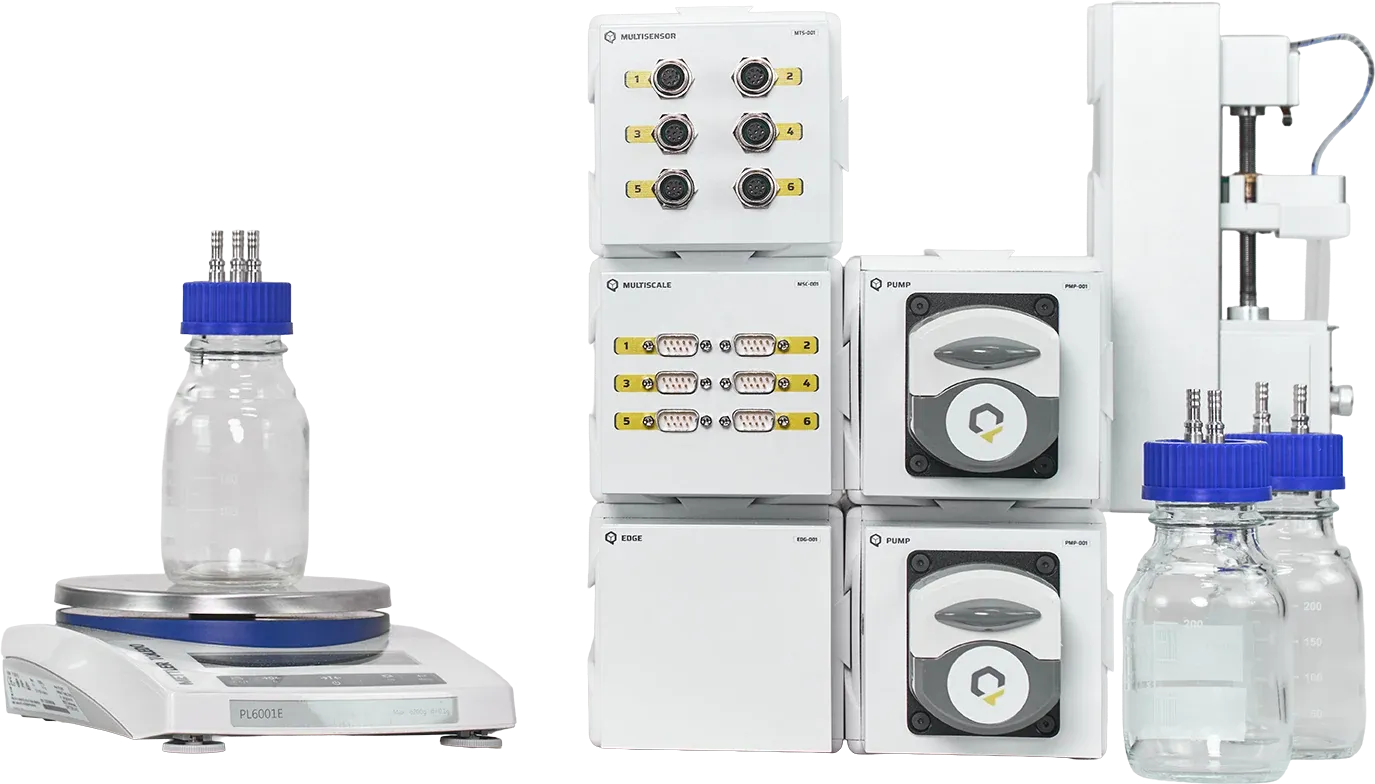

QB Multiscale

Connects up to six industrial scales to QB Control for real-time gravimetric control of dosing, sampling and feeding.

  • Simultaneous data acquisition from up to 6 scales
  • Taring from QB Control
  • Weight readings drive QB Pump dosing
Scale ports
6 × DB9 (RS232)
Interface
Ethernet RJ45 (PoE)
Compatible scales
Mettler Toledo (MT-SICS), Kern PKP 300-3
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Used in

Product page Request full specs
PRS-001

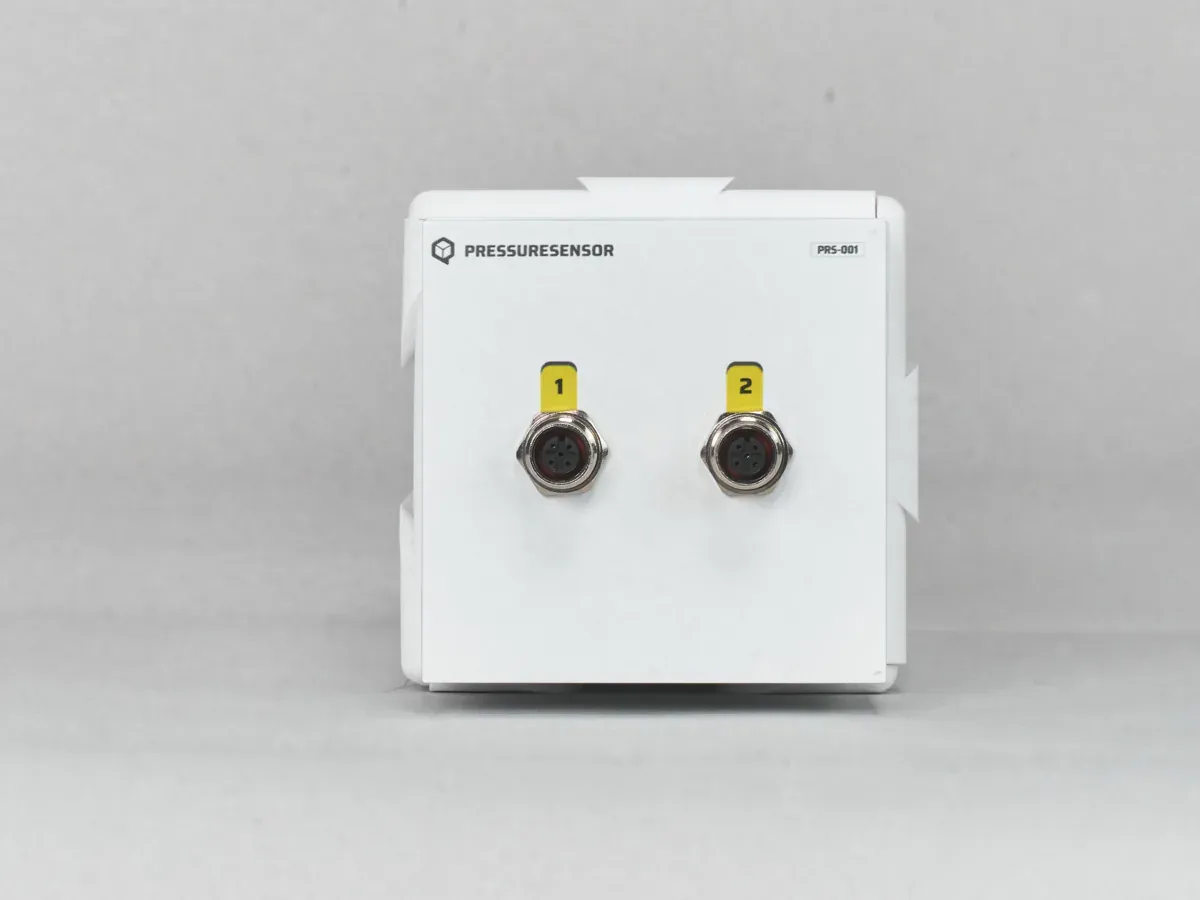

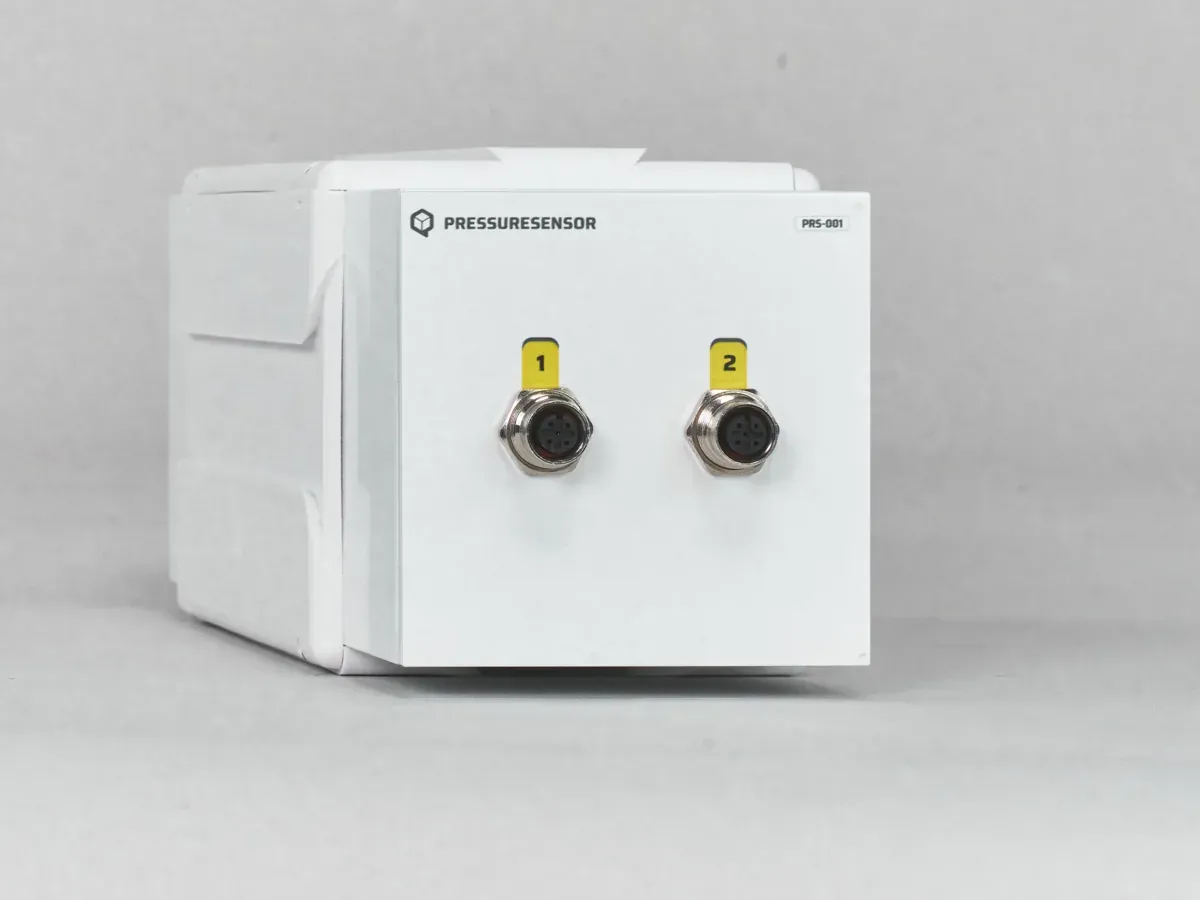

QB Pressure Sensor, front view

QB Pressure Sensor

Data acquisition device that reads up to 2 single-use, 1-channel IBP pressure transducers.

  • Power and data for up to 2 sensors, with taring
  • Pressure control together with QB Gas Flow or QB Pump
  • Leak detection and out-of-range alarms
Sensors
2 × single-use 1-channel IBP transducer
Pressure range
−99 to 300 mmHg
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Used in

Product page Request full specs

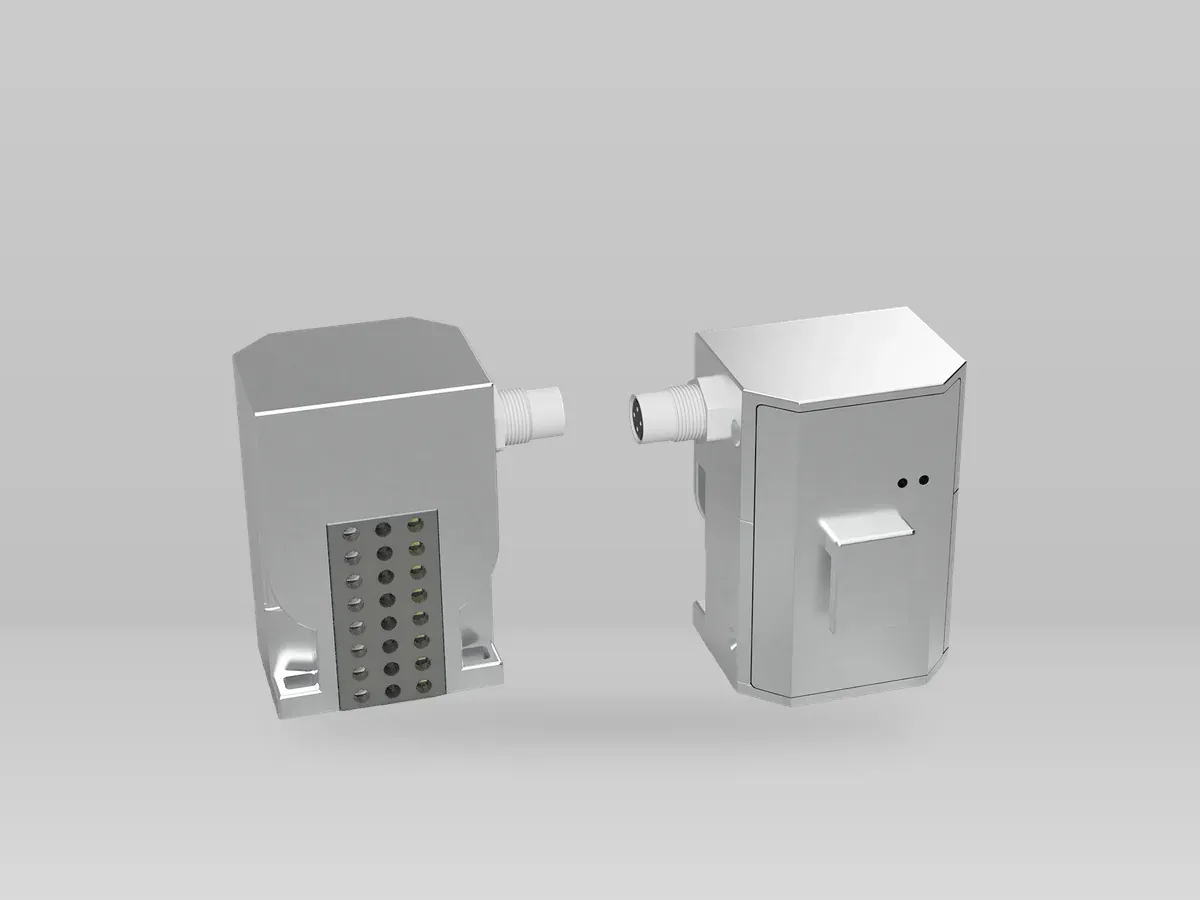

FSN-001
QB Foam & Liquid Level Sensor, angled view

QB Foam & Liquid Level Sensor

Non-contact optical sensor that measures liquid level and foam thickness through glass or plastic vessel walls.

  • No contact with the process — mounts outside the vessel wall
  • Tool-free extension modules adjust the measuring range
  • Proprietary foam detection (patent pending)
Measuring range
1–40 cm, ±0.5 cm
Measures
Foam level and liquid level
Interface
Modbus RTU RS-485 (M8, with M12 adapter)
Power
24 V DC, max 500 mA
Dimensions
76 × 44 × 36 mm (with connector)

Requires / works with

Product page Request full specs
GFC-001

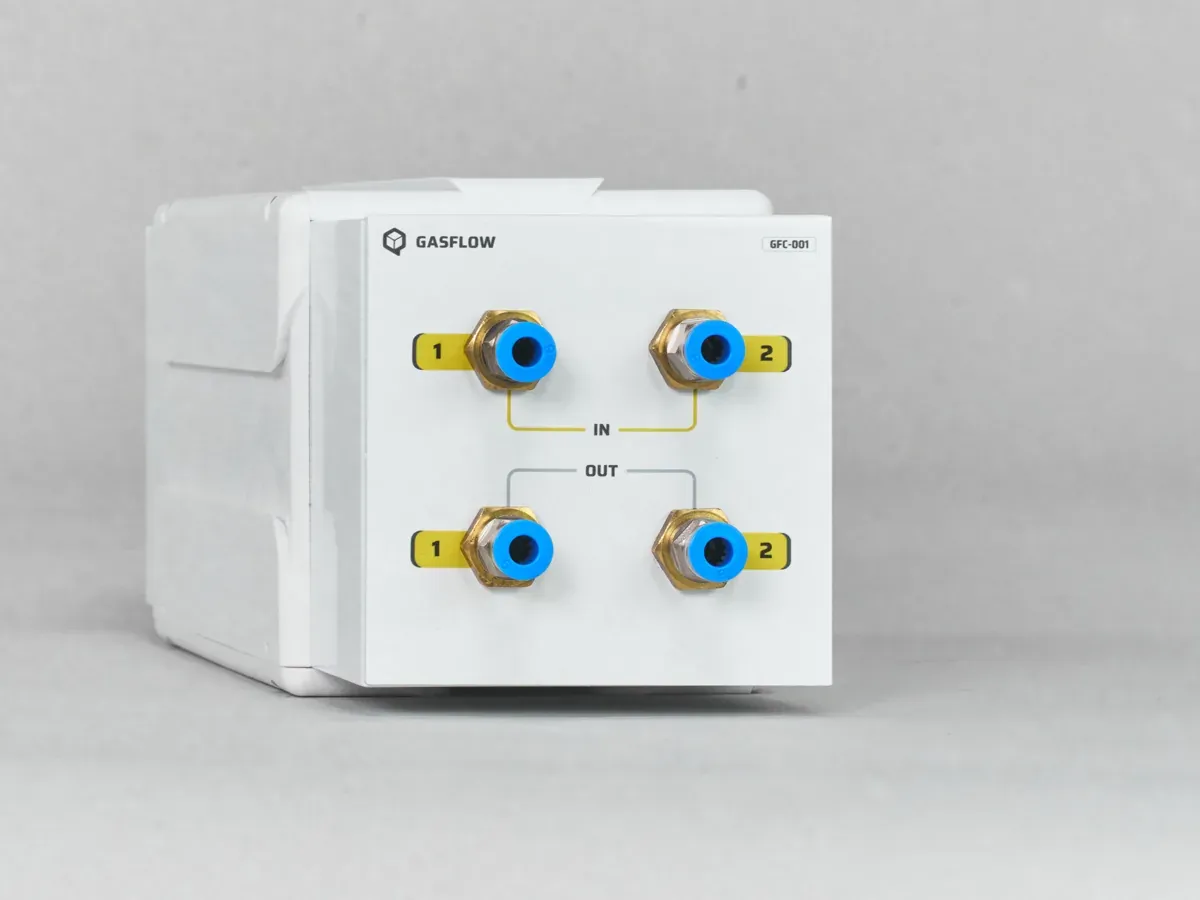

QB Gas Flow, front view

QB Gas Flow

Gas flow controller that regulates up to 2 gas streams from compressors, gas tanks or building gas installations.

  • Flow control, flow measurement and total volume counter
  • Precise regulation of up to 2 gas streams
  • Out-of-range alarms
Flow rate
0.1 SCCM–2 SLPM
Gases
Air, Ar, CO2, N2, N2O, H2, He, CH4
Source pressure
0–145 PSIG
Accuracy
1.5 % of reading or 0.2 % of full scale
Dimensions
310 × 115 × 115 mm

Requires / works with

Used in

Product page Request full specs
TCT-001
QB Thermo (chiller & heater), angled view

QB Thermo chiller & heater

Heating and cooling unit that controls process temperature through a heat-exchange liquid.

  • Temperature control with a Pt100 sensor on QB Multisensor
  • Front-panel screen for standalone operation
  • Out-of-range alarms
Temperature range
2–42 °C
Power
Heating 460 W, cooling 580 W
Connections
Self-sealing quick-connect thermofluid fittings
Supply
230 V AC (IEC)
Dimensions
345 × 248 × 215 mm

Requires / works with

Used in

Product page Request full specs

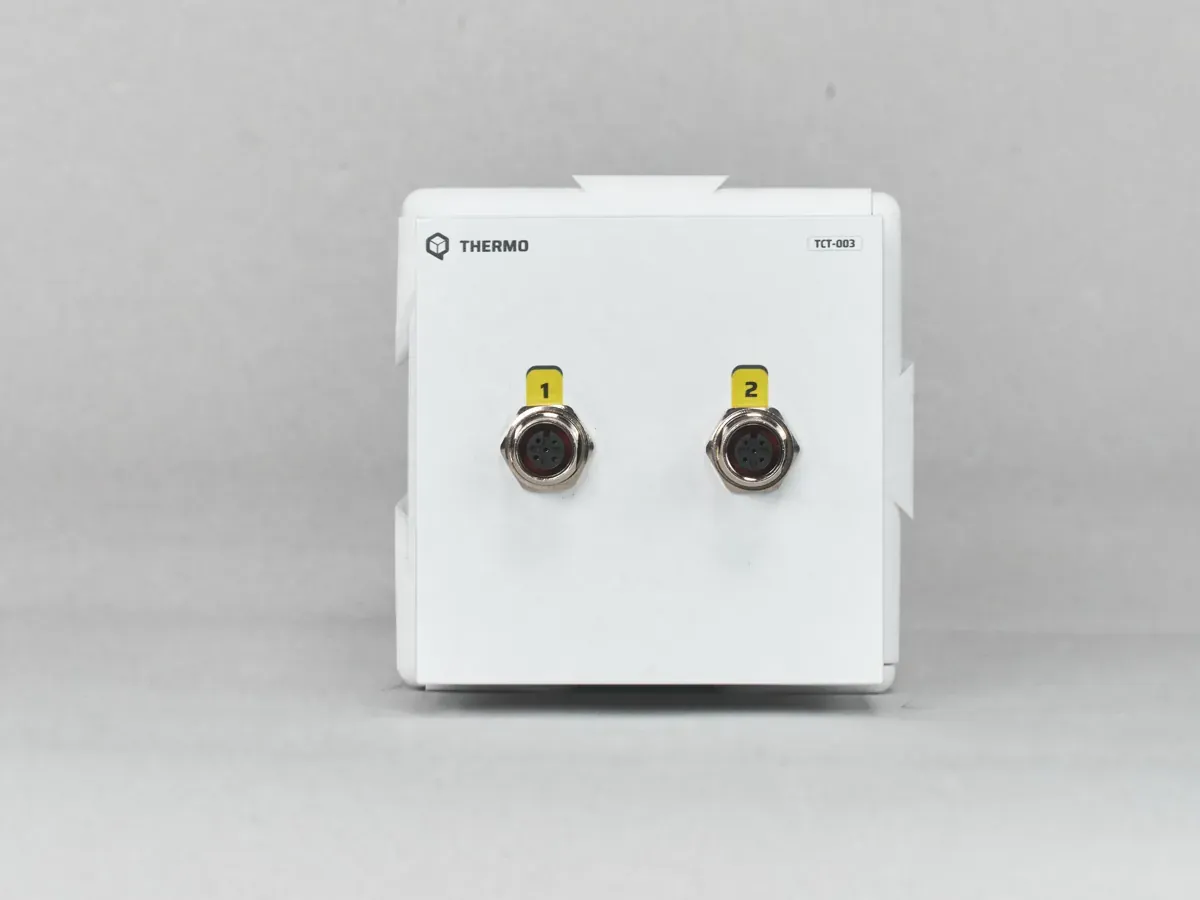

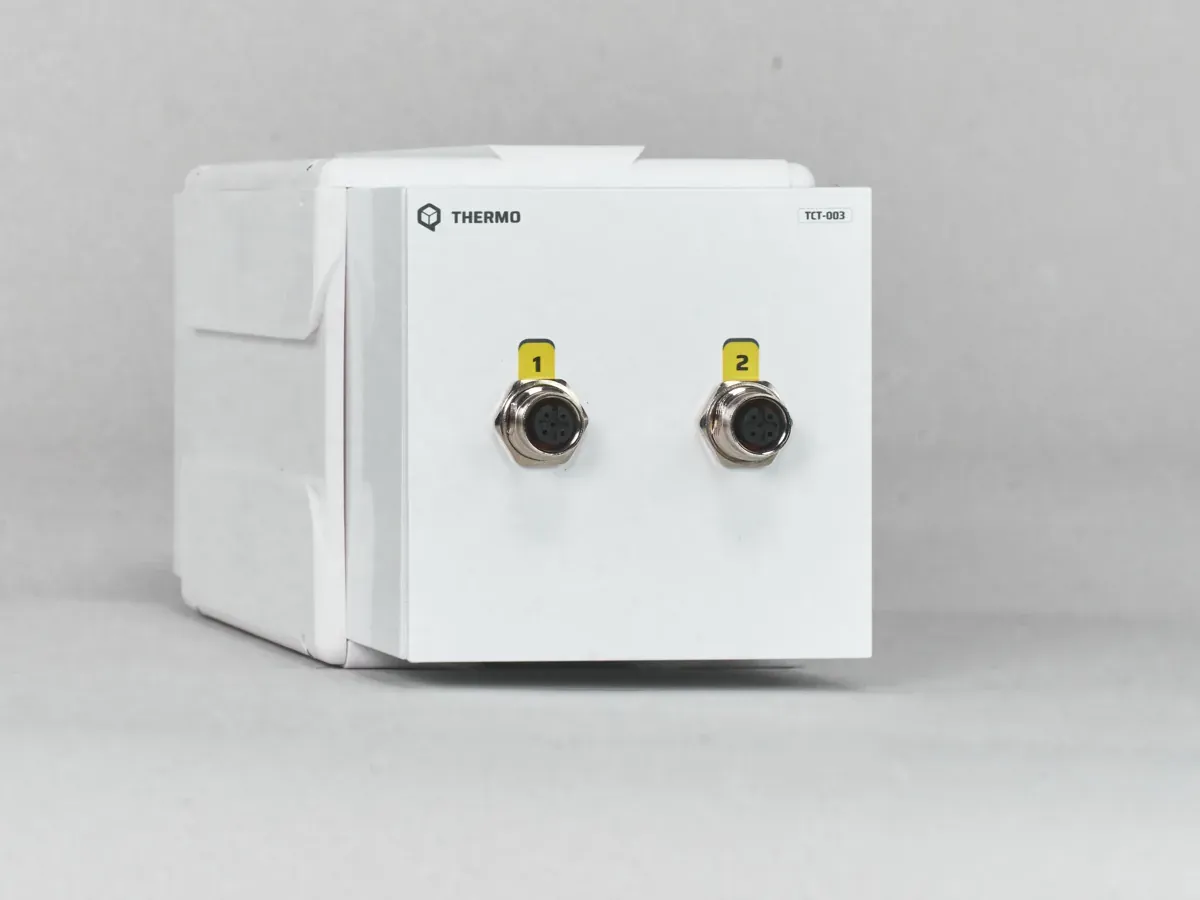

TCT-003
QB Thermo (heating mat controller), front view

QB Thermo heating mat controller

Drives up to 2 independent heating mats, with mat autodetection for optimal power management.

  • Up to 2 independent heating mats
  • Mat autodetection for optimal power management
  • Several mat sizes and power options for different vessels
Outputs
2 independent heating mats
Total power
Up to 200 W
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs
AGT-001

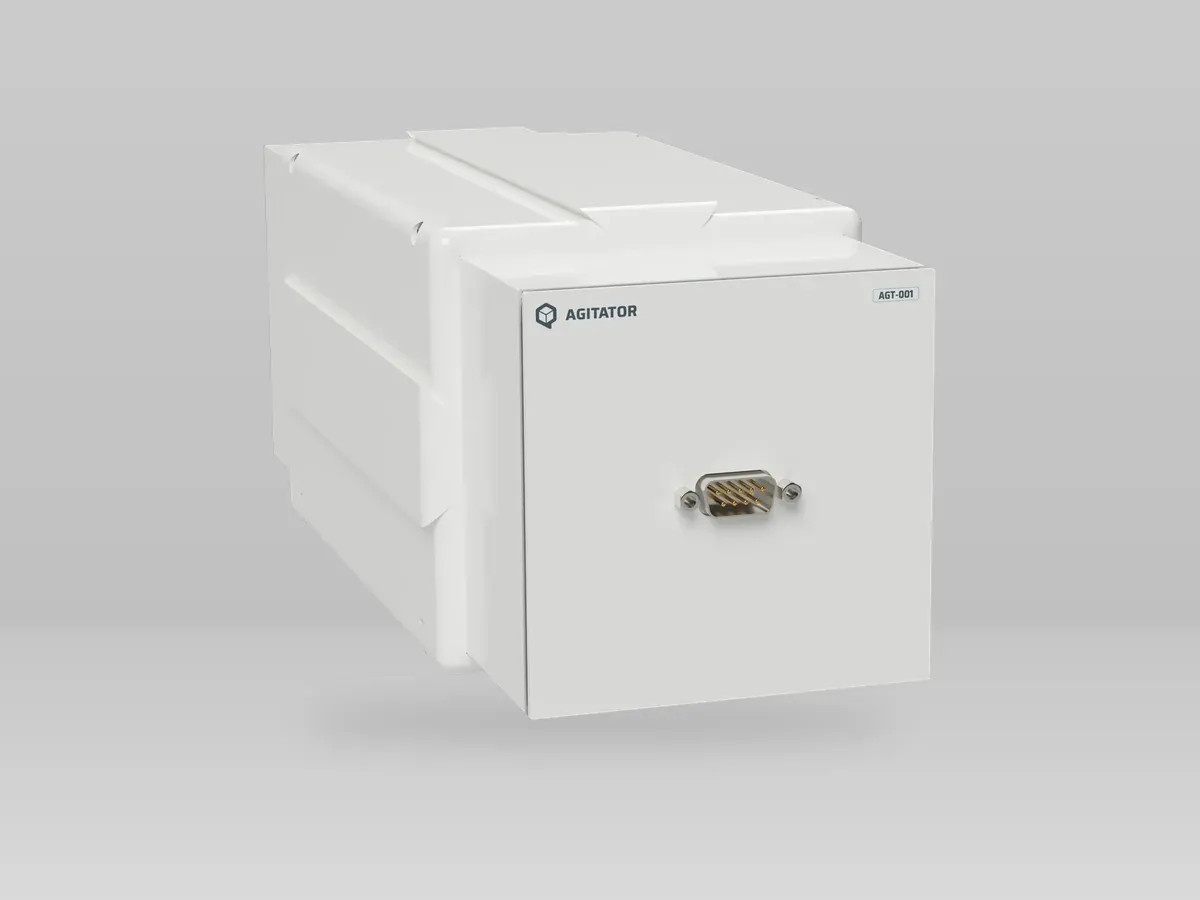

QB Agitator (overhead stirrer), angled view

QB Agitator overhead stirrer

Overhead stirrer that mixes continuously at a set speed or changes the mixing speed during the process.

  • Mixing at a set speed and torque
  • Adjusts power to the resistance of the mixed substance
  • Power and torque measurement with alarms
Maximum torque
600 Ncm
Speed range
10–500 or 50–2,000 rpm
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs
AGT-002

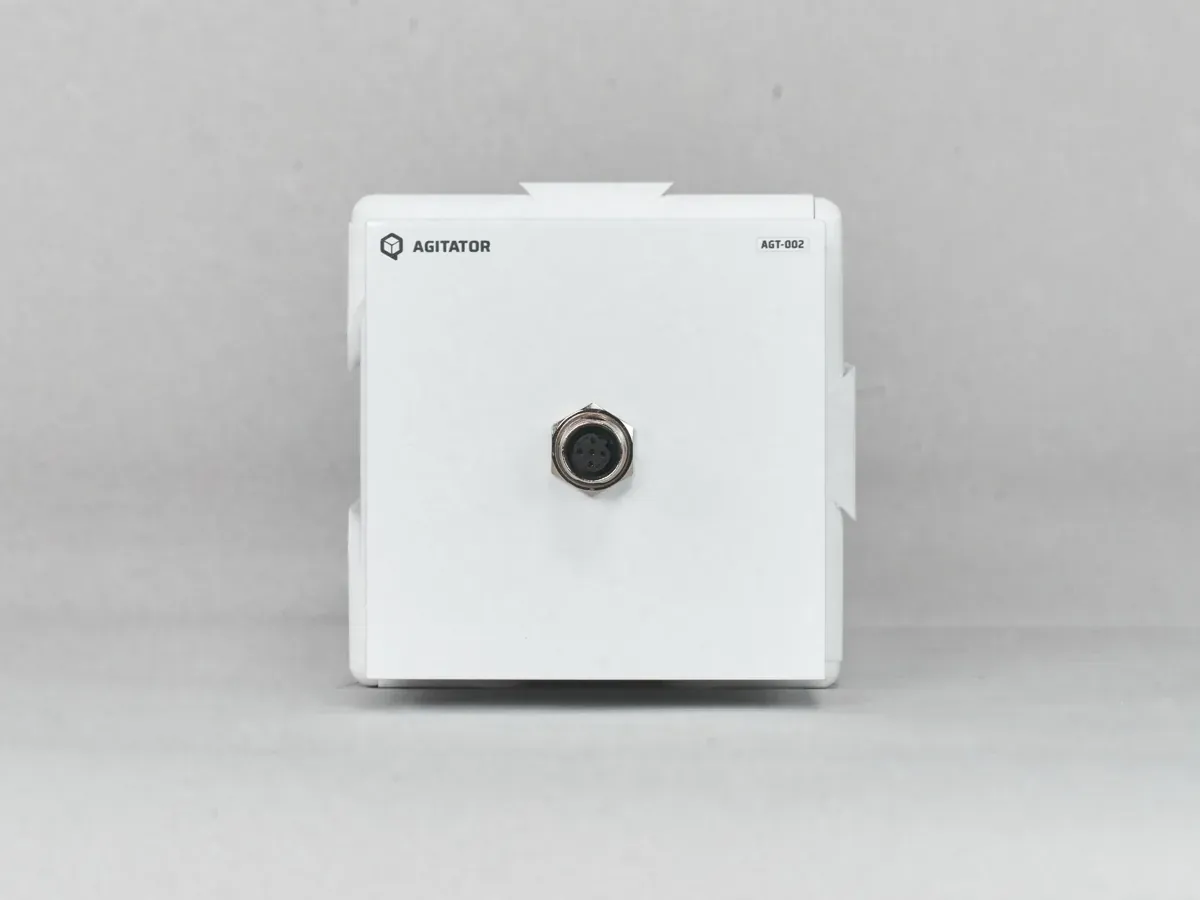

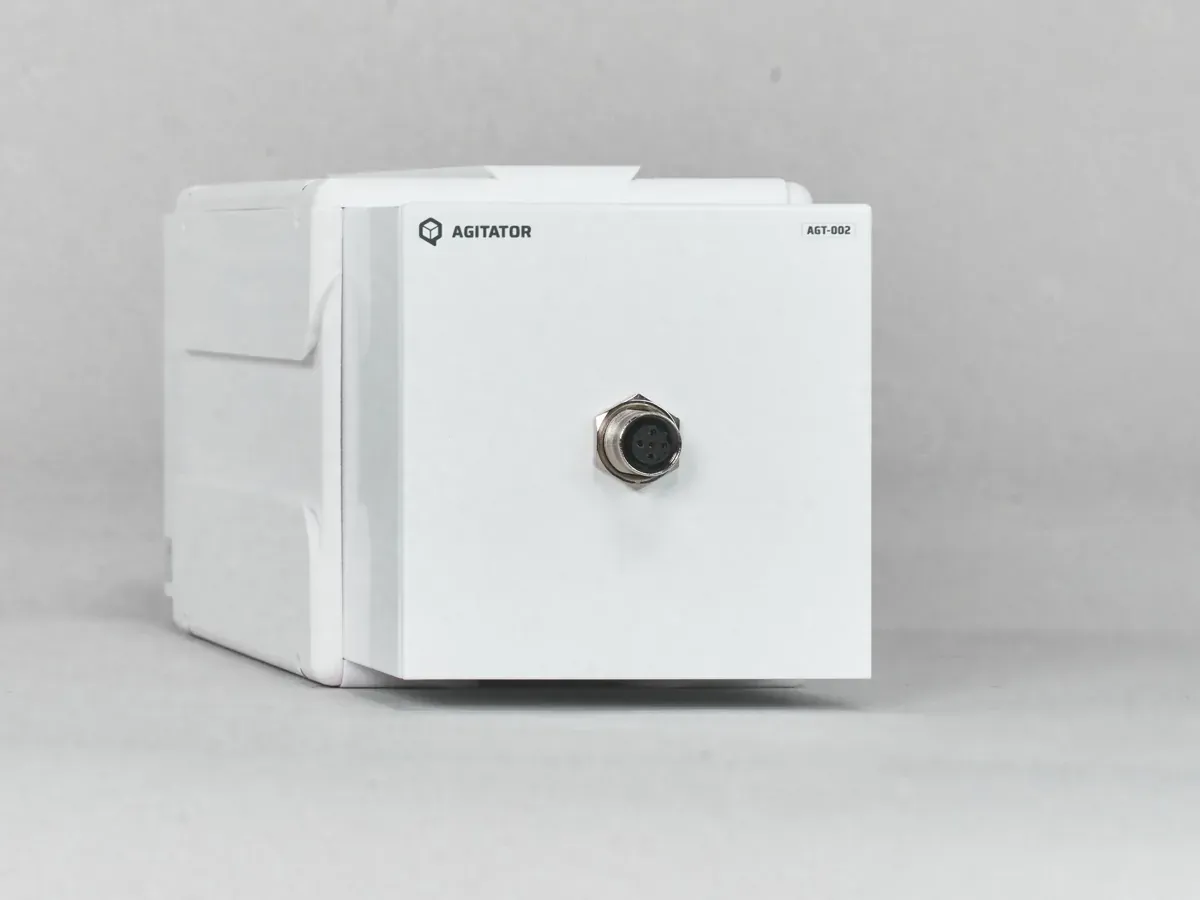

QB Agitator (for sealed vessels), front view

QB Agitator for sealed vessels

Mixer control unit with an external, vessel-mounted agitation module for hermetically sealed setups.

  • Mixing at a set speed while the vessel stays sealed
  • Adjusts power to the resistance of the mixed substance
  • Emergency stop on overheating or excessive load
Speed range
1–600 rpm
Maximum torque
230 Ncm
Agitation module
55 × 70 × 185 mm, M12 connection
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Used in

Product page Request full specs
MAG-001

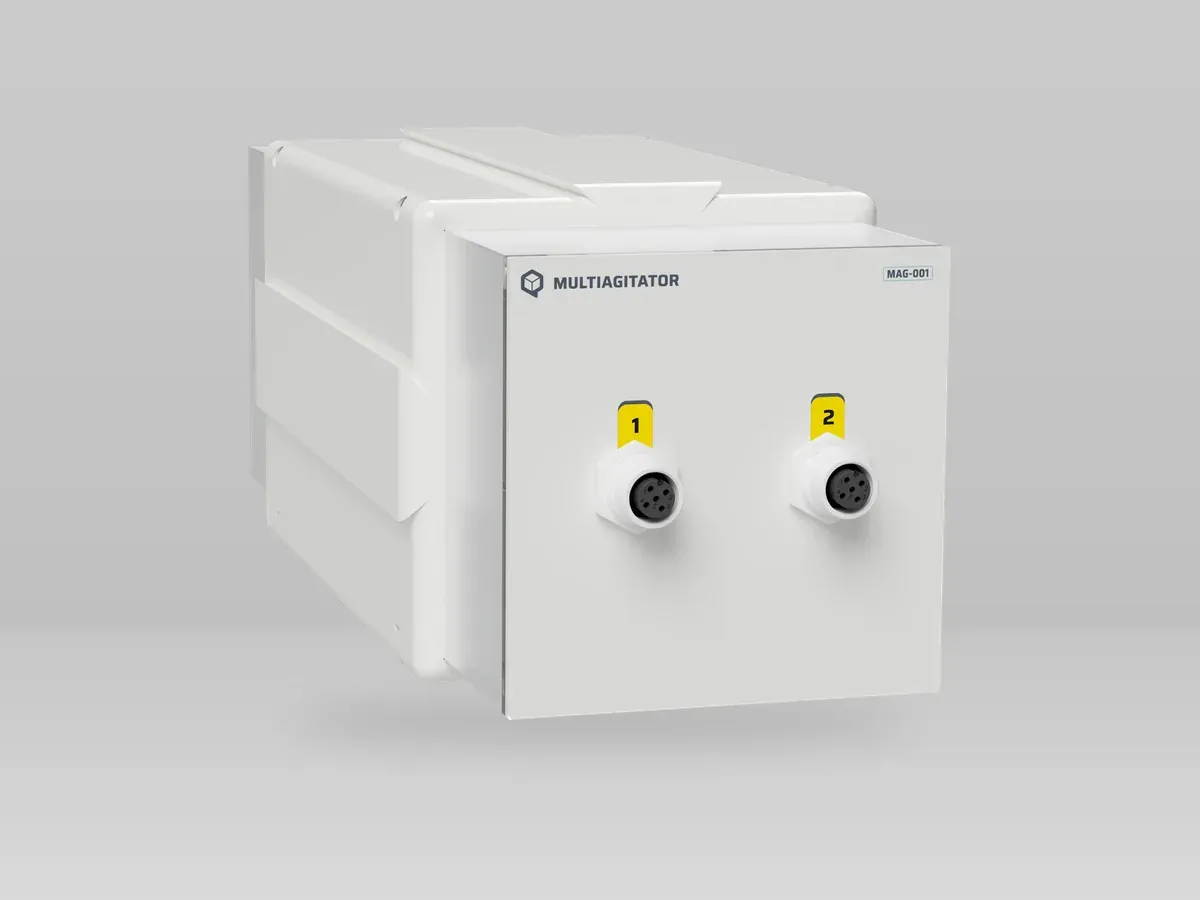

QB Multiagitator (2 agitation modules), angled view

QB Multiagitator 2 agitation modules

Stirs up to two sealed vessels at once, with dynamic speed adjustment during the process.

  • Parallel mixing in 2 sealed vessels
  • Dynamic speed adjustment during the process
  • Emergency stop on overheating or excessive load
Agitation modules
2 × M12
Speed range
1–600 rpm
Maximum torque
230 Ncm
Dimensions
310 × 115 × 115 mm; module 55 × 70 × 185 mm

Requires / works with

Product page Request full specs
MAG-002

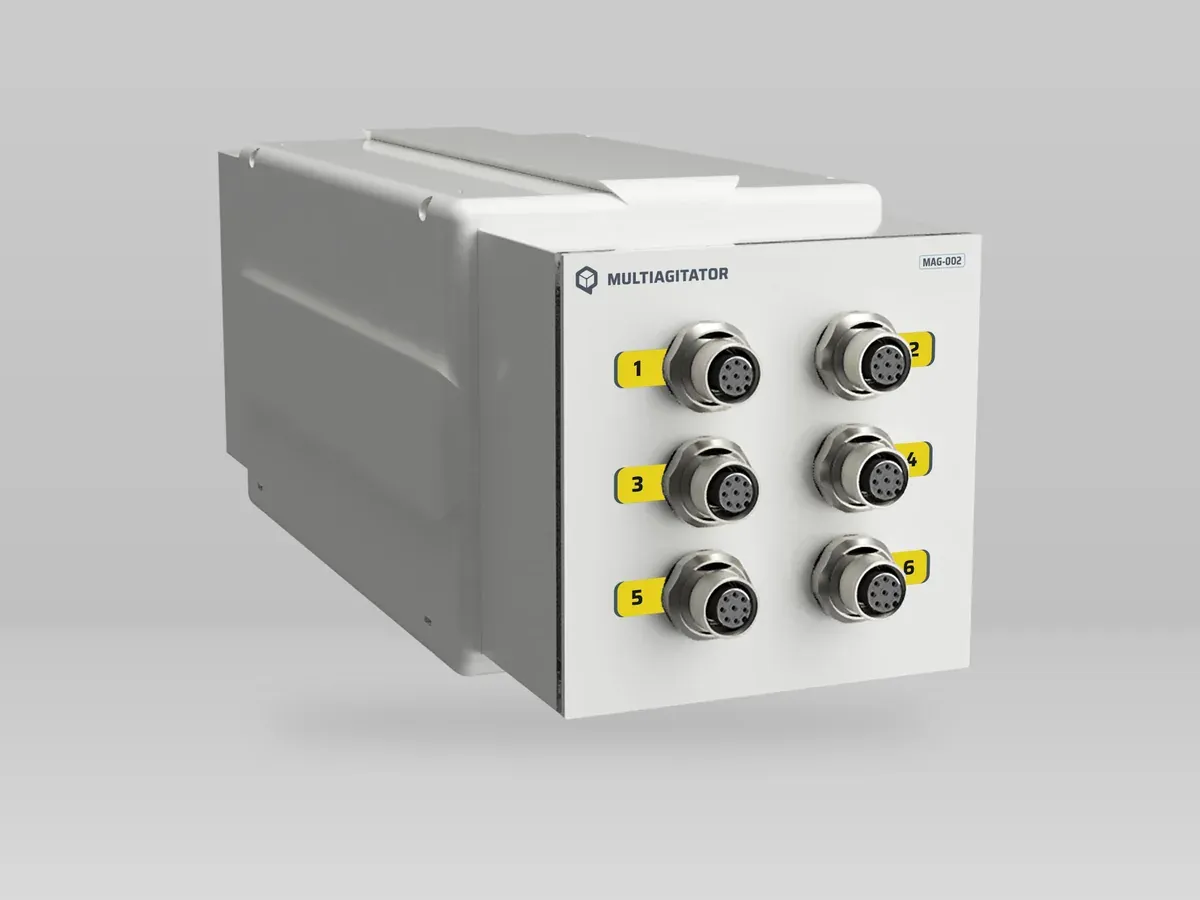

QB Multiagitator (6 agitation modules), angled view

QB Multiagitator 6 agitation modules

Stirs up to six sealed vessels at once, with dynamic speed adjustment during the process.

  • Parallel mixing in up to 6 sealed vessels
  • Dynamic speed adjustment during the process
  • Emergency stop on overheating or excessive load
Agitation modules
6 × M12
Speed range
1–600 rpm
Maximum torque
230 Ncm
Dimensions
310 × 115 × 115 mm; module 55 × 70 × 185 mm

Requires / works with

Product page Request full specs
LED-001

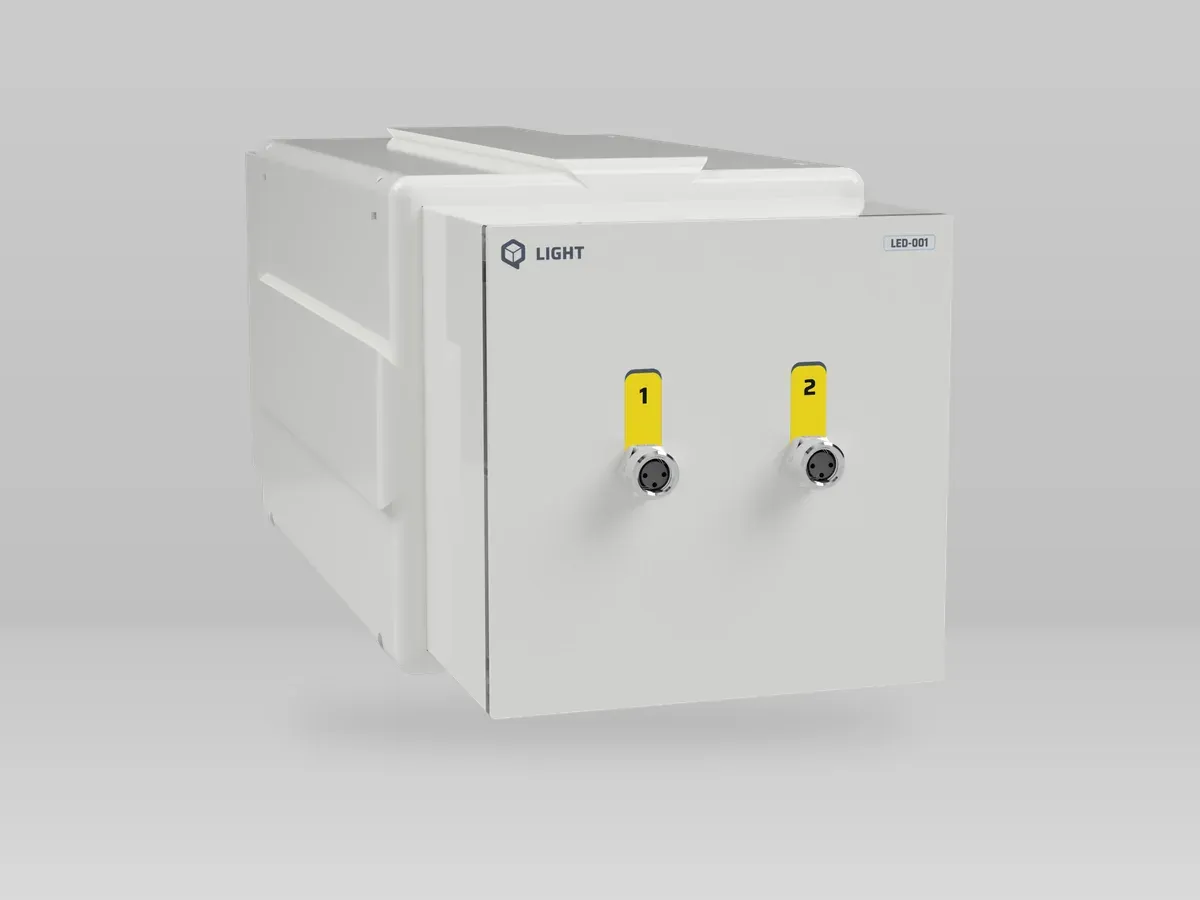

QB Light (2 outputs), angled view

QB Light 2 outputs

Lighting controller for bioreactors and cultivation systems that drives up to 2 independent LED modules.

  • Controls intensity and duration of LED lighting
  • Daily on/off scheduler
  • Works with LED modules supplied by A4BEE
Outputs
2 independent LED modules
LED modules
4000 K; 55–900 PPFD (2,800–40,000 lx)
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs
LED-002

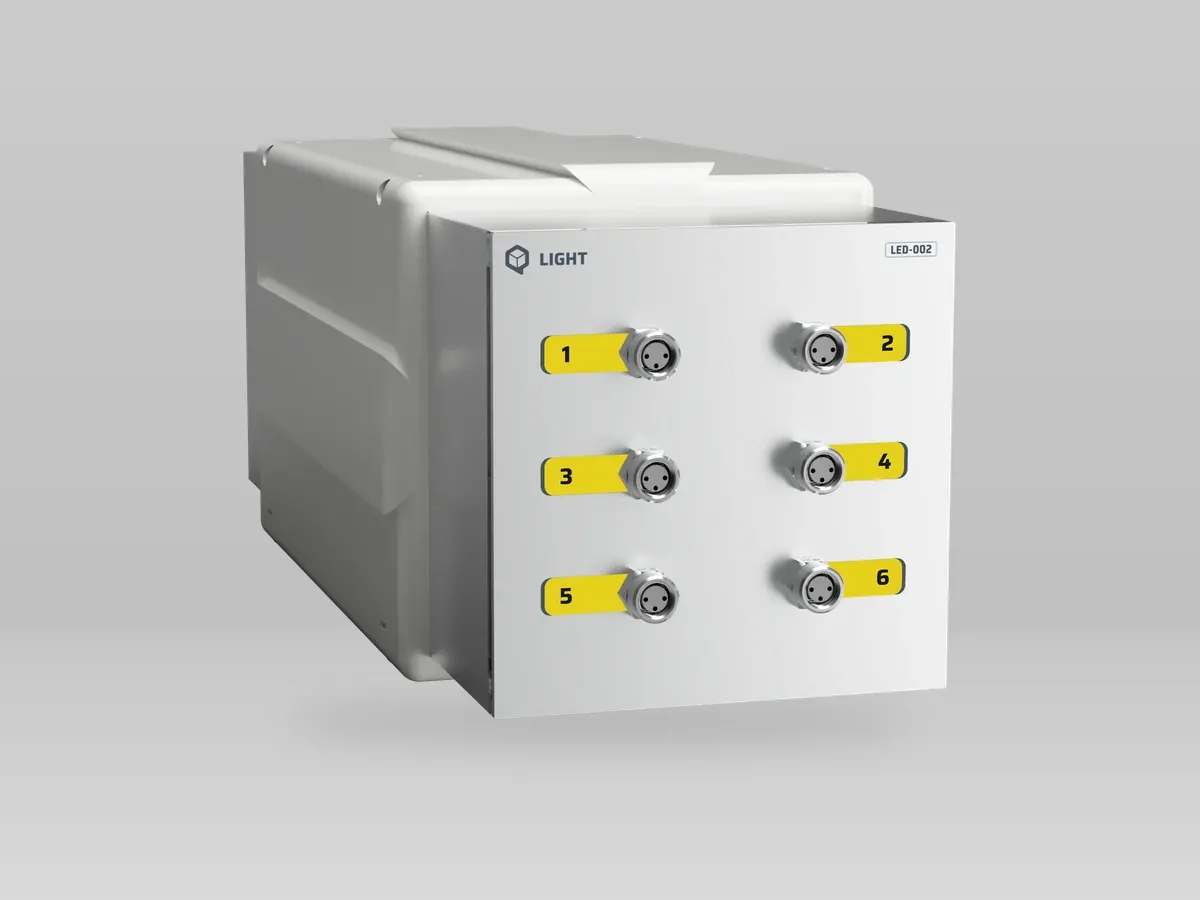

QB Light (6 outputs), angled view

QB Light 6 outputs

Lighting controller for bioreactors and cultivation systems that drives up to 6 independent LED modules.

  • Controls intensity and duration of LED lighting
  • Daily on/off scheduler
  • Works with LED modules supplied by A4BEE
Outputs
6 independent LED modules
LED modules
4000 K; 55–900 PPFD (2,800–40,000 lx)
Dimensions
310 × 115 × 115 mm
Protection
IP40

Requires / works with

Product page Request full specs

How modules combine

Build a system one module at a time

All modules share one housing format and stack side by side. Add a module, plug in one cable, and it appears in QB Control, ready to use in recipes. Step through the sequence to see a setup grow into an automated sampling system.

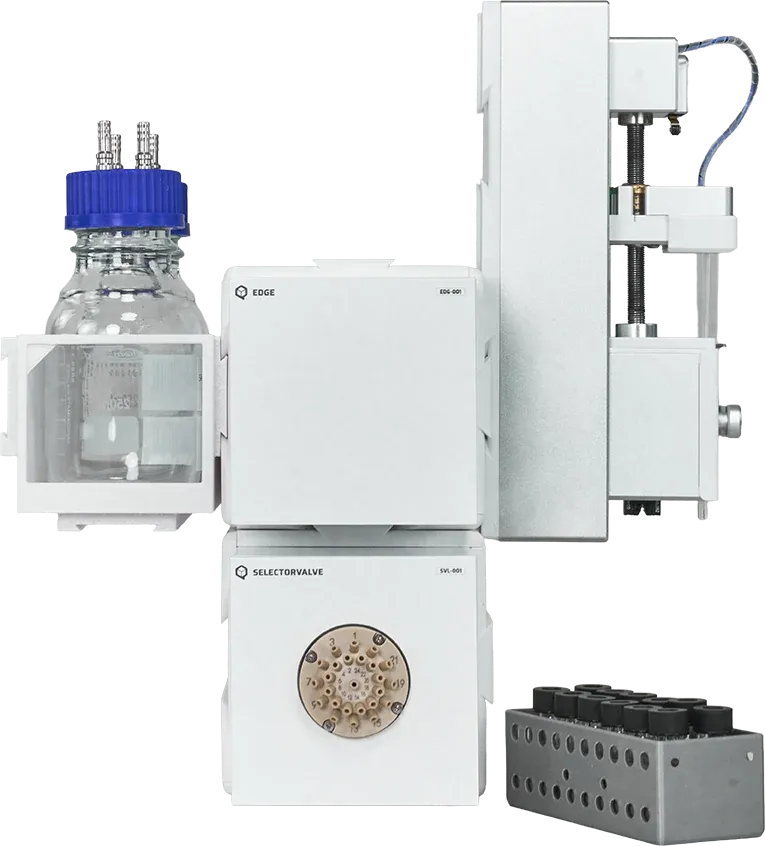

Starting setup: QB Edge with pumps, sensing, gas and mixingAdd a second QB Gas Flow: one PoE cable, QB Control discovers itAdd the QB Selector Valve for fluid routingAdd the QB Syringe PumpConnect the vessel and sample storage: ready for automated sampling

1/5 Starting setup: QB Edge with pumps, sensing, gas and mixing

Systems

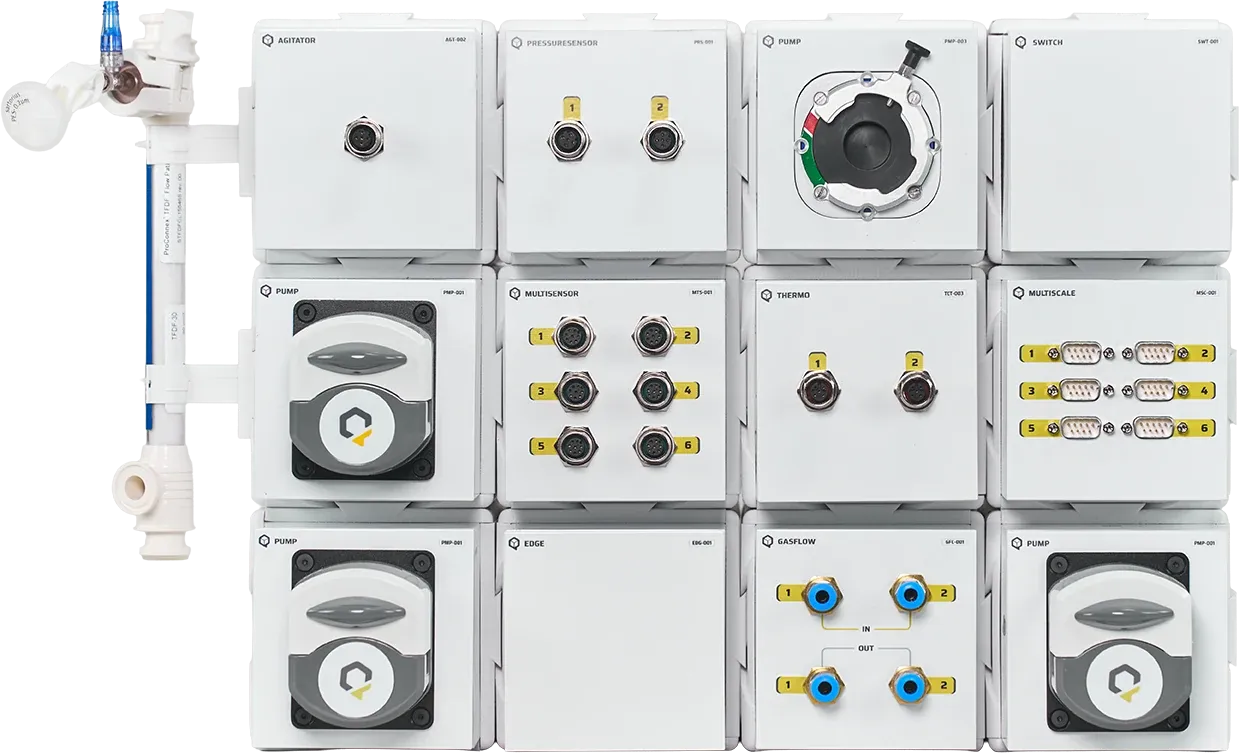

Ready-made systems built from QB Modules

Starting points for common bioprocess tasks. Each is configured for your process; module codes open the quick view.

Existing bioreactor towers connected to QB Control after a retrofit

Already have bioreactors?

Retrofit existing equipment with QB Control

Keep your vessels and towers; replace the control layer, unit by unit.

How retrofitting works

QB Control

QB Control: the software that runs every module

A web-based, vendor-independent platform that runs on QB Edge. Open it from a tablet, a desk screen or a laptop: configure the system, run recipes and follow the process live.

  • Dynamic P&ID with live values
  • Recipe automation and scheduling
  • Alarms, notifications and audit trail
  • Calibration, inventory and reports
  • Remote access from any browser

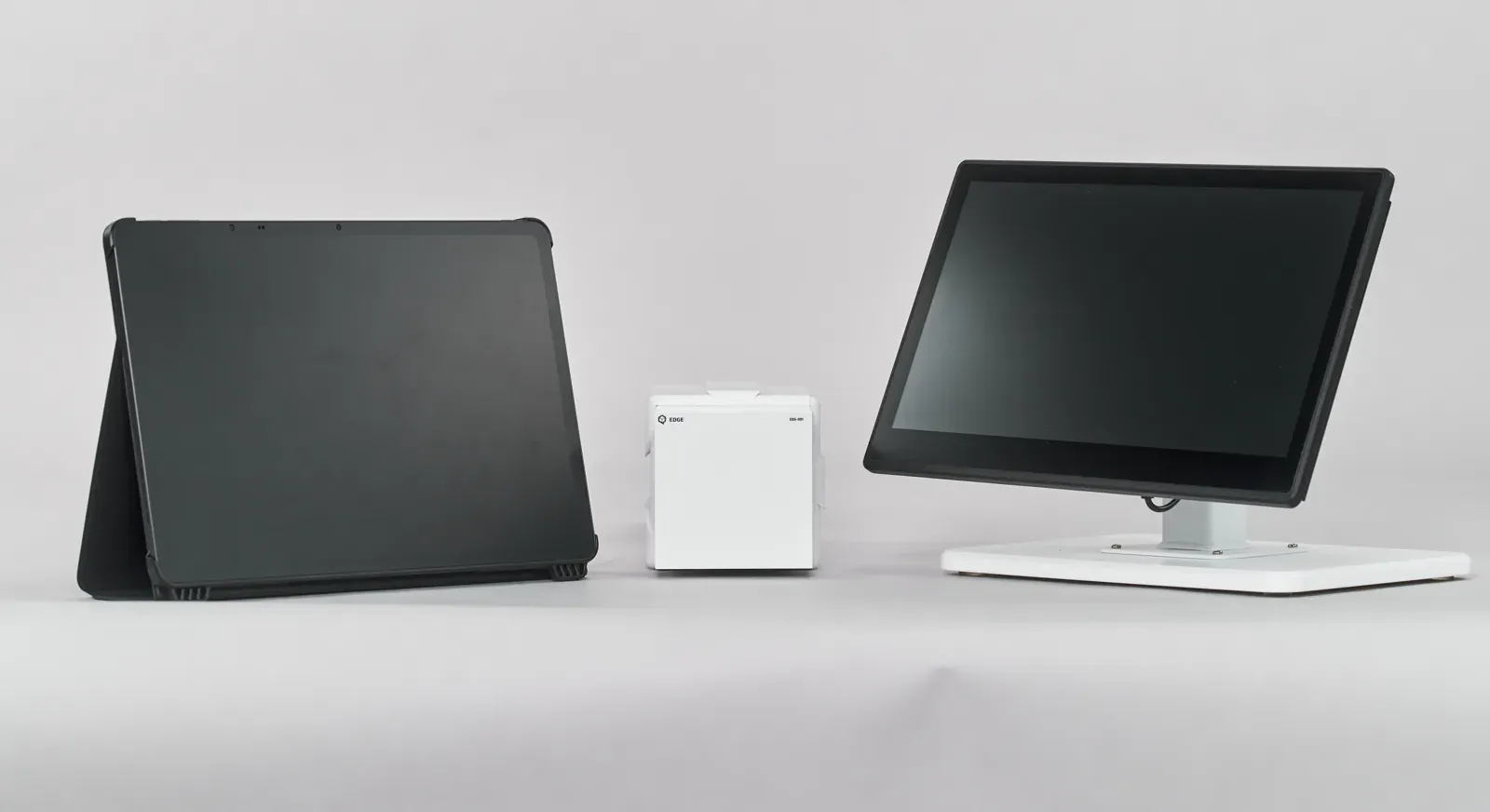

QB Edge with a tablet and a touchscreen monitor running QB Control

Licence tiers

  • Basic

    Core operation for a single system and process

  • Advanced

    Multi-process operations and integrations

  • Pro

    Full capabilities and maximum scalability

Process services

  • Sampling Aliquoting Available
  • Sampling Dilution Available
  • Automated Sampling Available
  • Sampler Cleaning Available
  • Temperature Control by TCU Available
Explore QB Control

Full PDF catalog

Get the complete QB Modules catalog

The online catalog shows the essentials. The PDF (72 pages, edition 09.2026) has the full technical detail. We email you the download link straight away.

  • Full specifications, front and back panels for every QB Module
  • Supported Hamilton, Mettler Toledo and Levitronix sensors
  • Tanks, vessels and accessories
  • QB Foam & Liquid Level Sensor and sample handling
